CENTENNIAL MODEL EXTRA-LARGE MAILBOX ON TYPE 3 SUPPORT

Report Number(s): 0-6968-R9

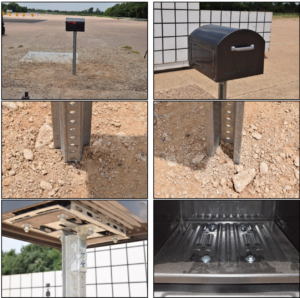

Description: The test installation consisted of a single Architectural Mailboxes© Centennial model #950020B extra-large mailbox mounted on a 2-lb/ft perforated U-channel post. The mailbox was attached to the post via angle brackets using a model DHT# 148939 mailbox bracket. CENTENNIAL MODEL EXTRA-LARGE MAILBOX ON TYPE 3 SUPPORT

Test Level: 3

MASH Test Number: 3-61

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Fail

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

Test Article Description

Mailbox Type: Locking Architectural

Mailbox Number: Single

Height: 42"

Base Type: Frangible/Yielding

Support Type: Perforated U-channel post

Report(s):

Final Report
