Chevron Sign Installed on 5.5H:1V Slope Ditch

Report Number(s): Report No.: 9-1002-12-6

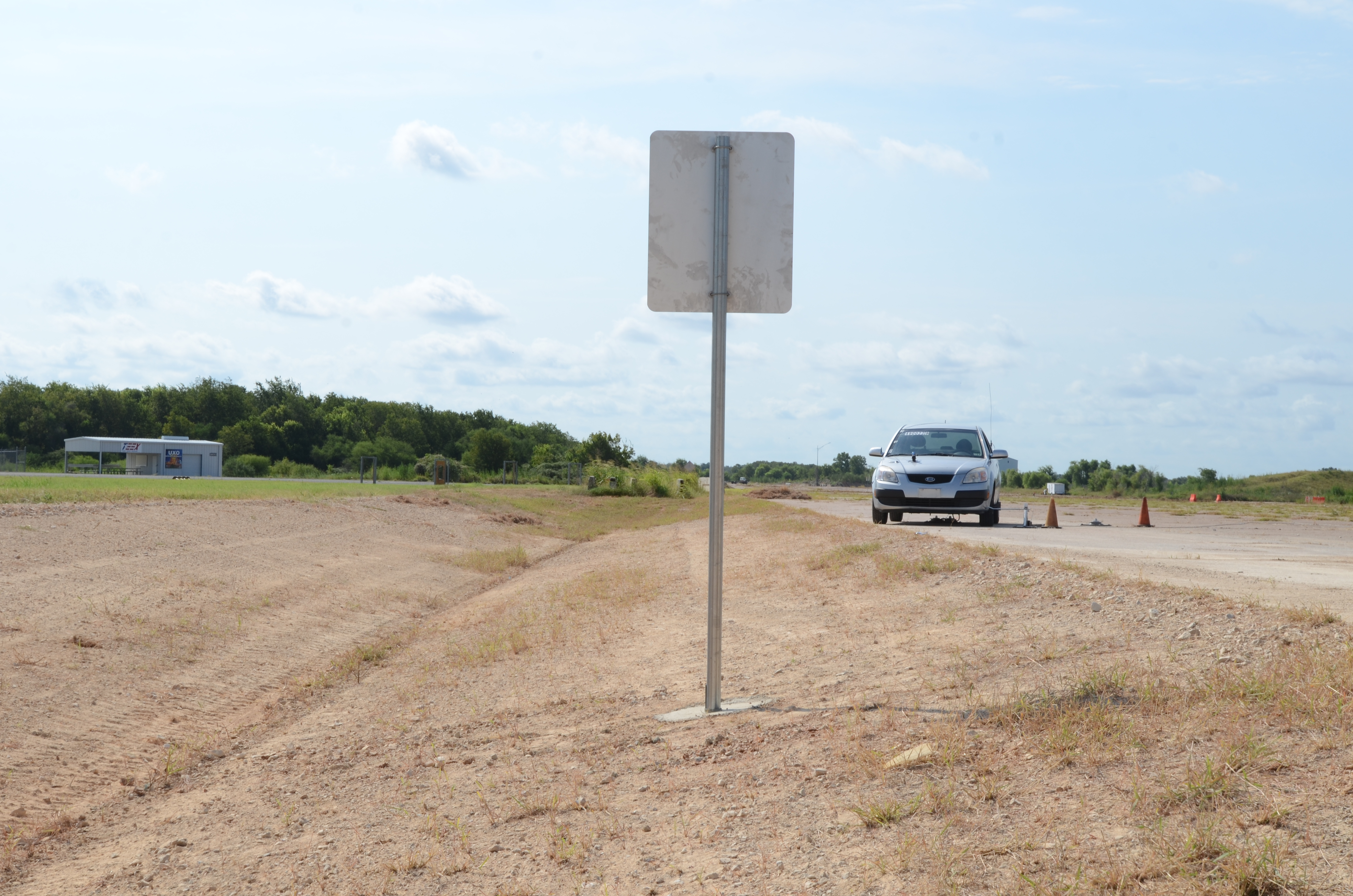

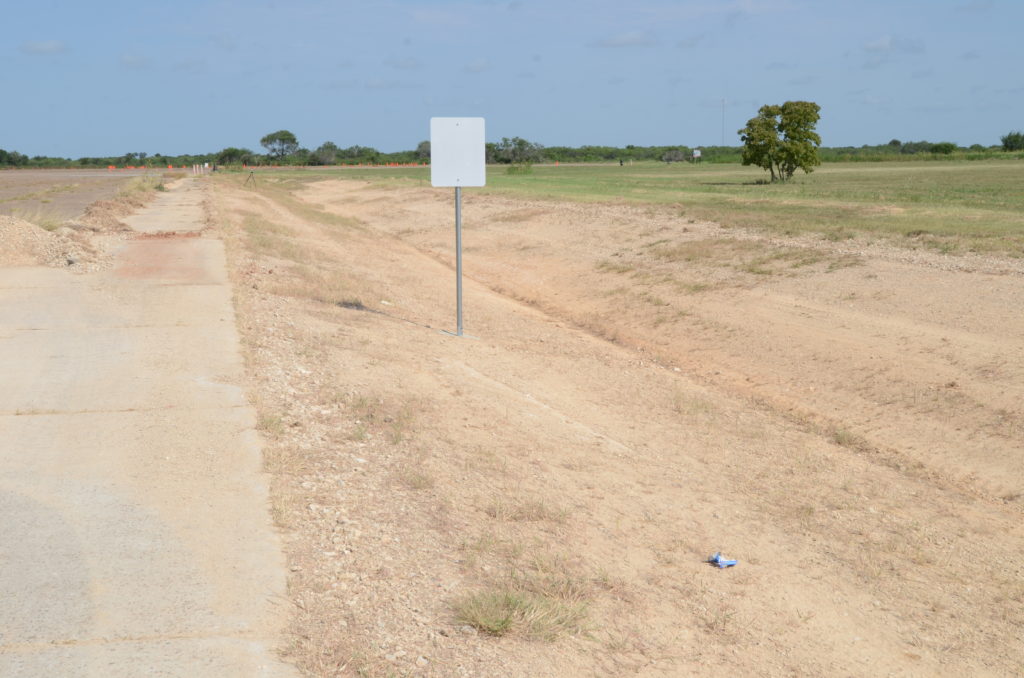

Description: 24" x 30" chevron sign at 4' mounting height from pavement surface, installed at an 8' lateral offset in a 5.5H:1V sloped ditch Base Type: Socketed System

Test Level: 3

MASH Test Number: 3-61

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

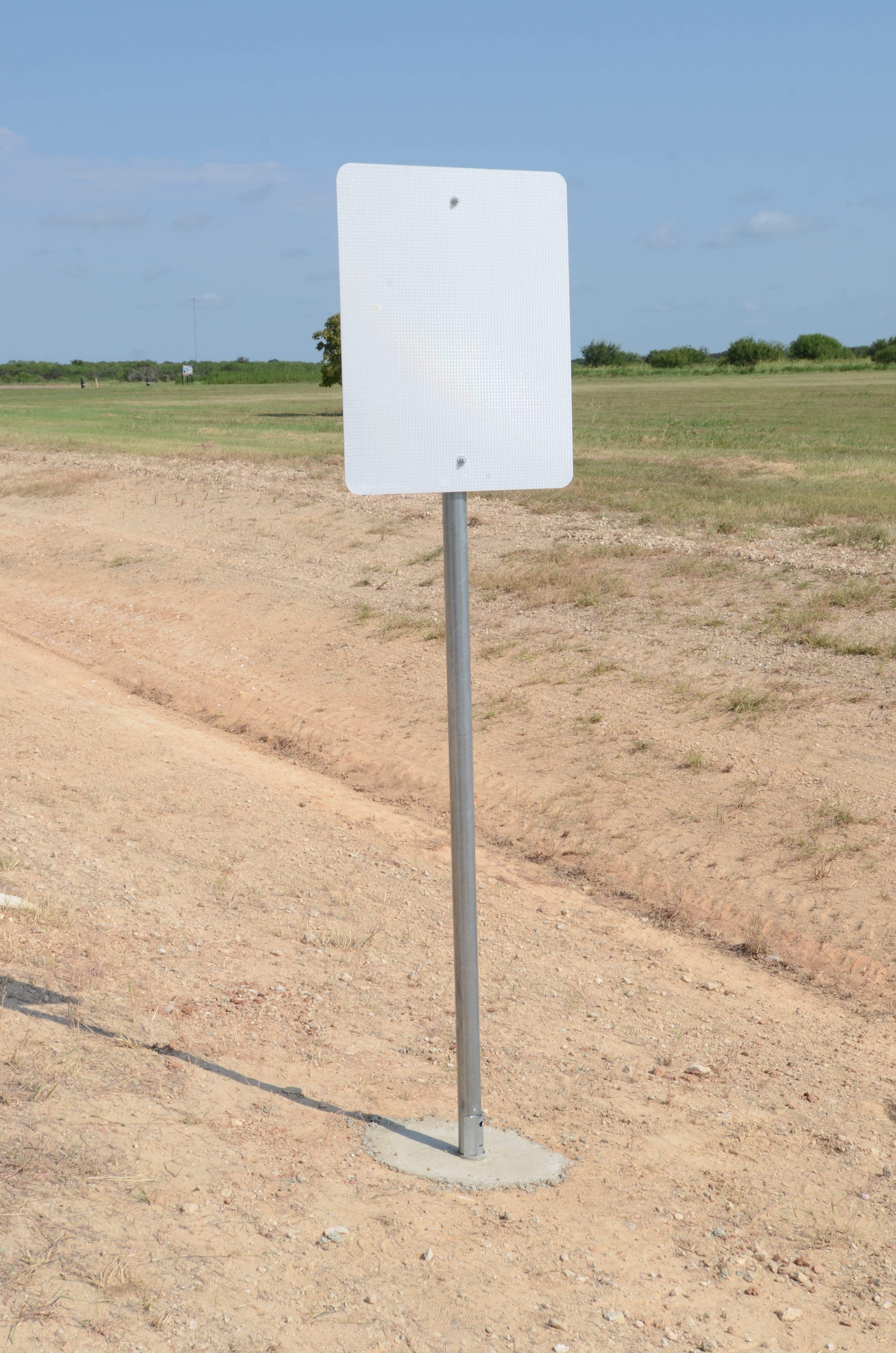

Test Article Description

Mounting Height: 48"

Base Type: Frangible/Yielding

Number of Legs: 1

Support Type: Pipe

Support Size: 2-3/8" OD 13 BWG

Support Material: Steel

Sign Material: Aluminum

Sign Size: 24" x 30"


9-1002-12-6 Draft Submittal acrobat-icon
