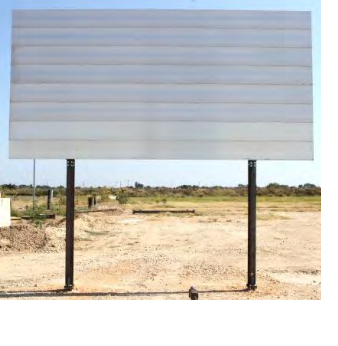

Direct Embedded Steel Support Temporary Large Guide Sign System
Report Number(s): Test Report No.: 0-6782-1
Description: Direct embedded steel support temporary guide sign system. Base Type: Slipbase Direct Embedded Steel Support Temporary Large Guide Sign System
Test Level: 3
MASH Test Number: 3-60
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: Texas Department of Transportation
Test Article Description
Mounting Height: 84"
Base Type: Slipbase
Number of Legs: 2
Support Type: I Shape
Support Size: W6 x 9
Support Material: Steel
Sign Material: Aluminum
Sign Size: 8' x 16'
Test Article Description
Mounting Height: 84"
Base Type: Slipbase
Support Type: Steel I-section
Support Size: W6X9
Sign Material: Aluminum
Sign Type: Rectangle
Sign Size: 8'X16'
Number of Legs: 2
