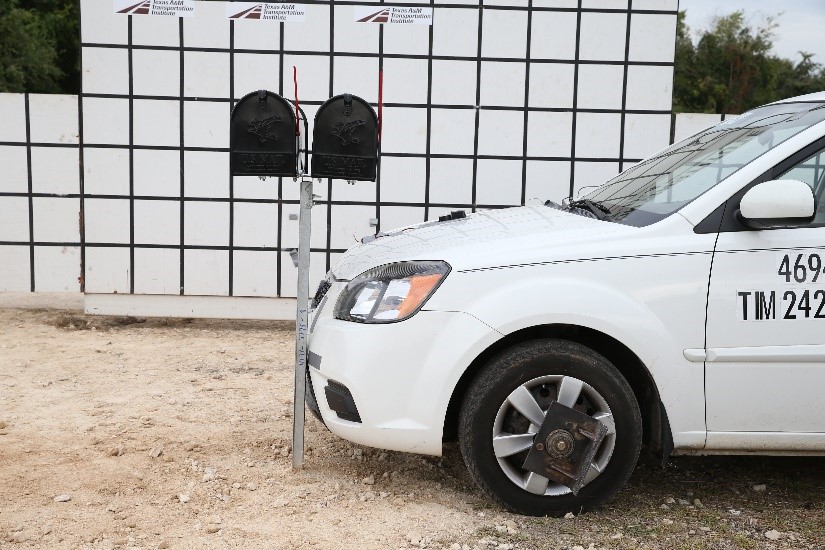

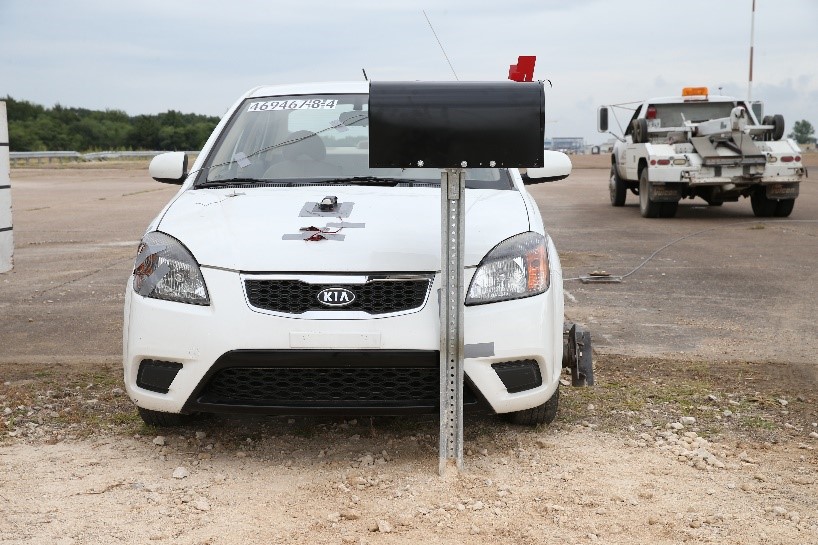

Double Mailbox System on Winged Channel Post With Type 3 Foundation

Report Number(s): 0-6946-1

Description: This mailbox system consists of a two mailboxes attached to a 2 lb/ft winged channel post that is directly embedded 2 ft below grade

Test Level: 3

MASH Test Number: 3-61

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

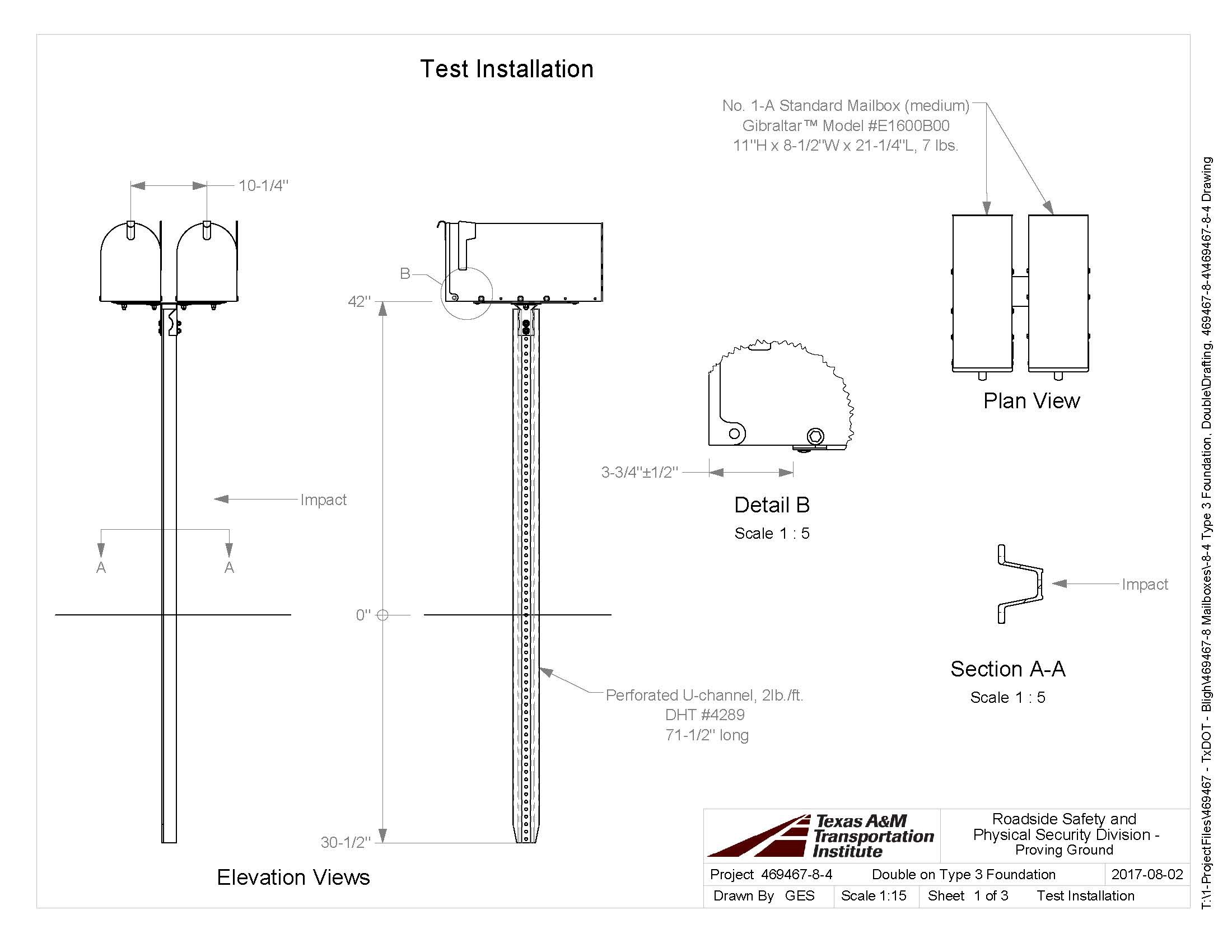

Test Article Description

Mailbox Type: Standard

Mailbox Number: Dual

Height: 42"

Base Type: Frangible/Yielding

Support Type: Perforated U-Channel post
