Locking Architectural Multiple Mailbox Support – 11-Gauge

Report Number(s): Test Report 9-1002-15-7

Description: Multiple-mount support for locking architectural mailboxes and standard mailboxes.  11-gauge steel tube with 4-inch embedment depth

Test Level: 3

MASH Test Number: 3-60, 3-61

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

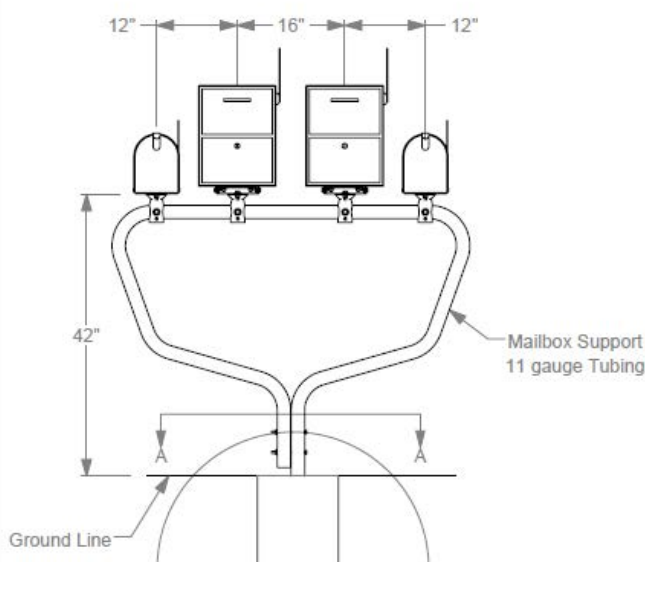

Test Article Description

Mailbox Type: Locking Architectural

Mailbox Number: Multiple

Height: 42"

Base Type: Frangible/Yielding

Support Type: 11-gauge Steel

Report(s):

TRP-9-1002-15-7
