Modified Skid-Mounted Support System for Temporary Guide Signs
Report Number(s): 0-6782-2

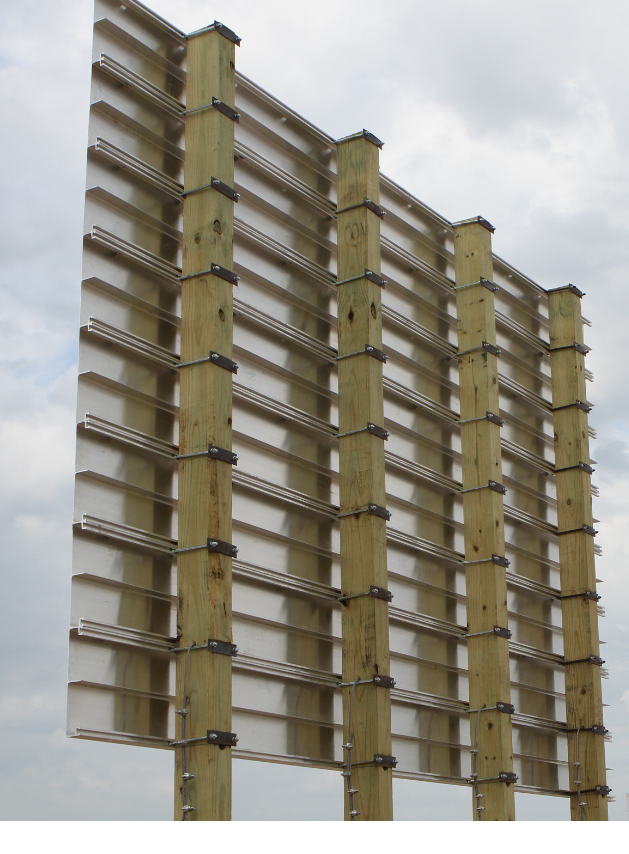

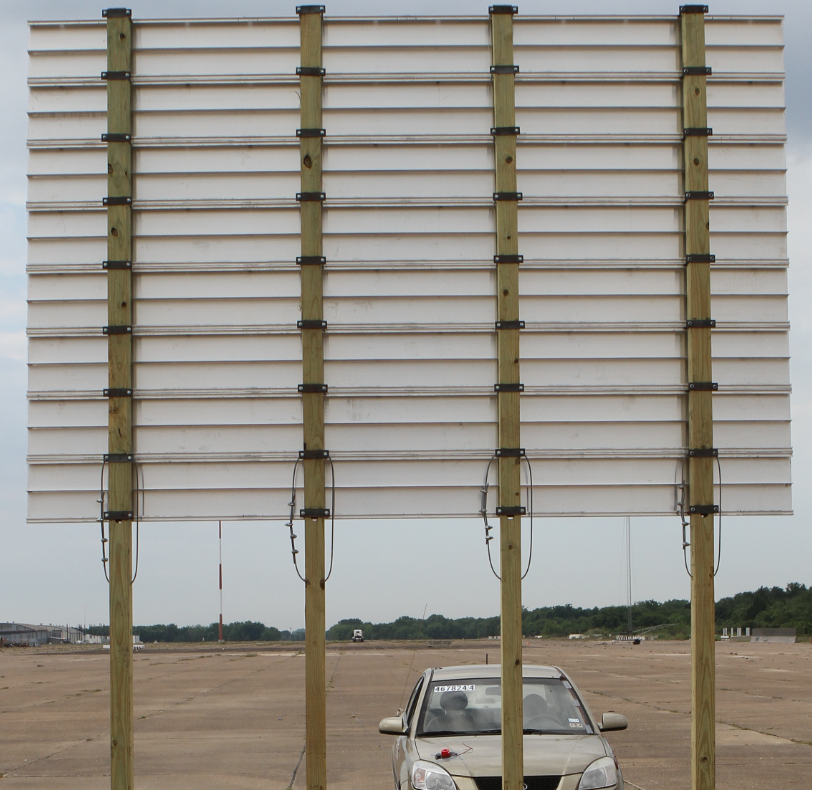

Description: Modified system. 8' x 12' extruded aluminum panel, four 4" x 6" wood supports , 7.5' mounting height. The 2"x 6" boards were replaced with support blocks. Gusset plate was removed while a second diagonal brace was added to support the sign. Base Type: Other Modified Skid-Mounted Support System for Temporary Guide Signs
Test Level: 3
MASH Test Number: 3-71, 3-72
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: Texas Department of Transportation
Test Article Description
Mounting Height: 90"
Base Type: Frangible/Yielding
Number of Legs: 4
Support Type: SYP
Support Size: 4" x 6"
Support Material: Wood
Sign Material: Aluminum
Sign Size: 8' x 12'
Test Article Description
Mounting Height: 90"
Base Type: Frangible
Support Type: Rectangular SYP post
Support Size: 4"X6"
Sign Material: Aluminum
Sign Type: Rectangle
Sign Size: 8'X12'
Number of Legs: 4
