Pedestrian Signal Pole

Report Number(s): NA

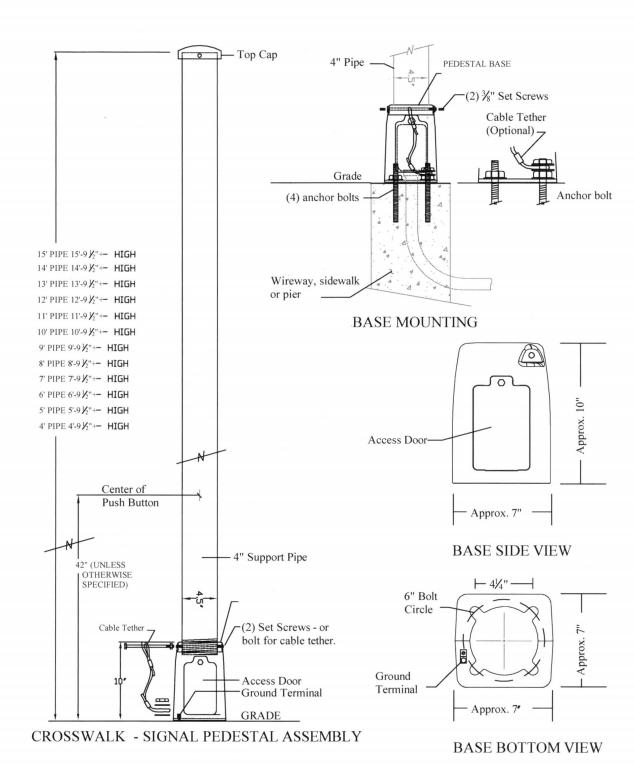

Description: The Frey Manufacturing Pedestrian Signal Pole is a support structure composed of circular pipe support and a signal pedestal assembly. The pipe had a length of 15.0 ft. (4.6 m). The as-tested configuration of the Pedestrian Signal Pole was tested with an accessible pedestrian signal (APS) push button station and traffic control signal controllers. Pedestrian Signal Pole

Test Level: 3

Eligibility Letter: SS184

MASH Test Number: 3-60, 3-61, 3-62

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Frey Manufacturing

Test Article Description

Mounting Height: 42"

Base Type: Slipbase

Number of Legs: 1

Support Type: Pipe

Support Size: 4.5" Nominal Diameter

Support Material: Aluminum

Sign Material: N/A

Sign Size: N/A
