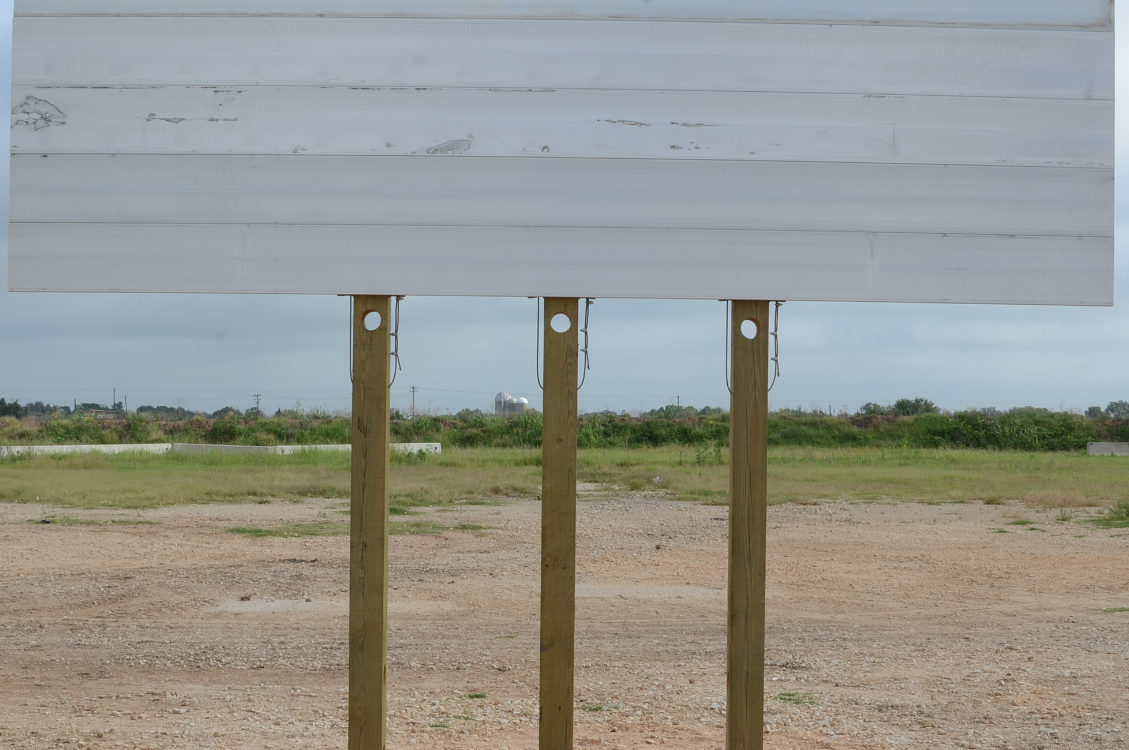

Direct Embedded Wood Support Temporary Large Guide Sign System

Report Number(s): Test Report No.: 0-6782-1

Description: Direct embedded wood support temporary guide sign system with 1/4" diameter restraining cable acting as hinge point for fractured wood supports to avoid secondary windshield or roof contact. Base Type: Frangible (Wood)

Test Level: 3

MASH Test Number: 3-60, 3-61, 3-62

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Mounting Height: 84"

Base Type: Frangible/Yielding

Number of Legs: 3

Support Type: SYP

Support Size: 6" x 8"

Support Material: Wood

Sign Material: Aluminum

Sign Size: 8' x 16'

Test Article Description

Mounting Height: 84"

Base Type: Frangible

Support Type: SYP Post

Support Size: 6"X8"

Sign Material: Aluminum

Sign Type: Rectangle

Sign Size: 8'X16'

Number of Legs: 3


0-6782-1 Draft Submittal acrobat-icon
