FAILED – Skid-Mounted Support System for Temporary Guide Signs
Report Number(s): 0-6782-2

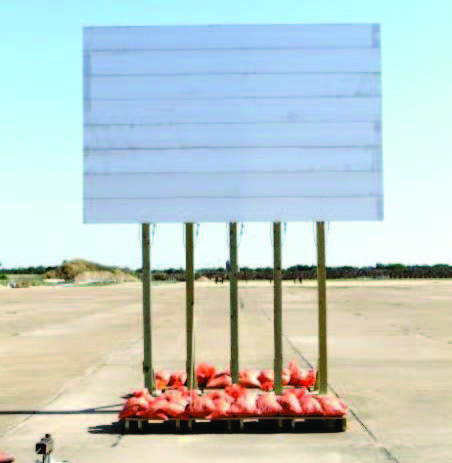

Description: [FAILED]-8' x 12' extruded aluminum panel, four 4" x 6" wood supports on 2" x 6" skids, 7.5' mounting height. Base Type: Other.
Test Level: 3
MASH Test Number: 3-70, 3-71
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Fail
Evaluation: Full-Scale Crash Testing
Sponsor: Texas Department of Transportation
Test Article Description
Mounting Height: 90"
Base Type: Frangible/Yielding
Number of Legs: 4
Support Type: SYP
Support Size: 4" x 6"
Support Material: Wood
Sign Material: Aluminum
Sign Size: 8' x 12'
Test Article Description
Mounting Height: 90"
Base Type: Frangible
Support Type: Rectangle SYP Post
Support Size: 4"X6"
Sign Material: Aluminum
Sign Type: Rectangle
Sign Size: 8'X12'
Number of Legs: 4
