Wedge Anchor System

Report Number(s): Report No.: 0-5526-1

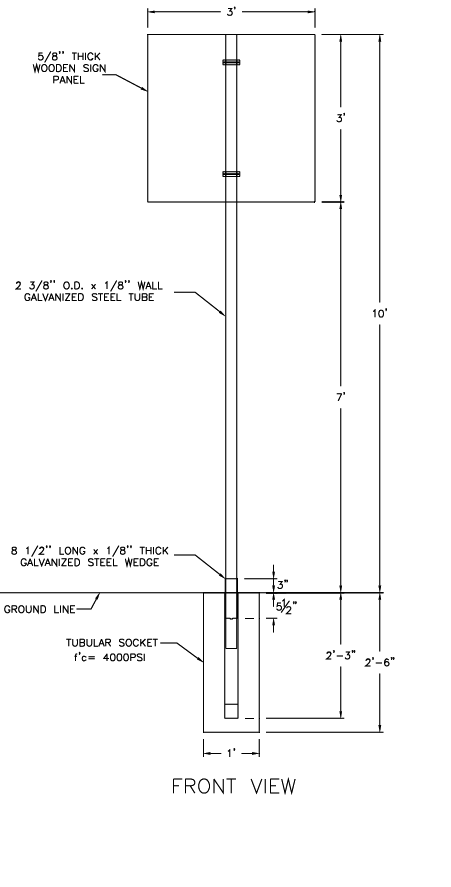

Description: A 2-3/8" O.D. galvanized steel tube with a wall thickness of 1/8" was used to support a 3' x 3' x 5/8" thick wooden sign panel. Base Type: Socketed System Wedge Anchor System

Test Level: 3

MASH Test Number: 3-62

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

Test Article Description

Mounting Height: 84"

Base Type: Frangible/Yielding

Number of Legs: 1

Support Type: Galvanized Steel tube

Support Size: 2-3/8" OD 13 BWG

Support Material: Steel

Sign Material: Plywood

Sign Size: 3' x 3'
