DESIGN AND EVALUATION OF A MASH TEST LEVEL 2 COMPLIANT PERMANENT CONCRETE LOW-PROFILE BARRIER

Report Number(s): 616151-01

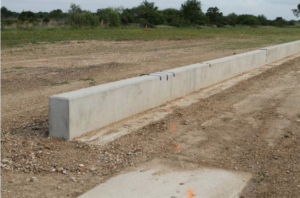

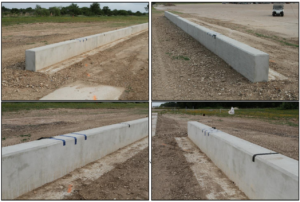

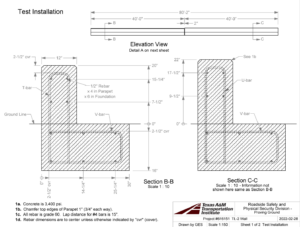

Description: The installation consisted of two cast-in-place, steel reinforced, low-profile concrete parapets cast onto a steel reinforced concrete deck. The downstream parapet height was constructed to provide an alternative system with a taller height, in case of containment failure of the 20-inch parapet portion.

Test Level: 1

Barrier Type: Low-Profile Concrete Parapet

MASH Test Number: 2-10, 2-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Florida DOT
