Truck-Trailer Mounted Attenuator (TTMA) 200

Report Number(s): P40080-01, P38076-01, P38078-01, P38075-02, P40206-01

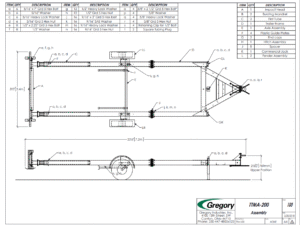

Description: The TTMA-200 is trailer attenuator designed to dissipate the kinetic energy of an impacting vehicle to reduce the severity of a crash. As the impact head and mandrel are pushed forward into the first tube, the tapered mandrel bursts the first tube at the corners into four (4) straps. The bursting of the first tube dissipates the kinetic energy of the impacting vehicle. The trailer attenuator has a length of 23.6ft (7.2 m) with an optional hitch extension its total tested length was 24.9 ft. (7.6 m) and a max width of 8.0 ft. (2.4 m). The TTMA-200 is supported by a wheel and axle assembly and is attached to the support truck with a lunette ring.

Test Level: 3

Eligibility Letter: CC-152A

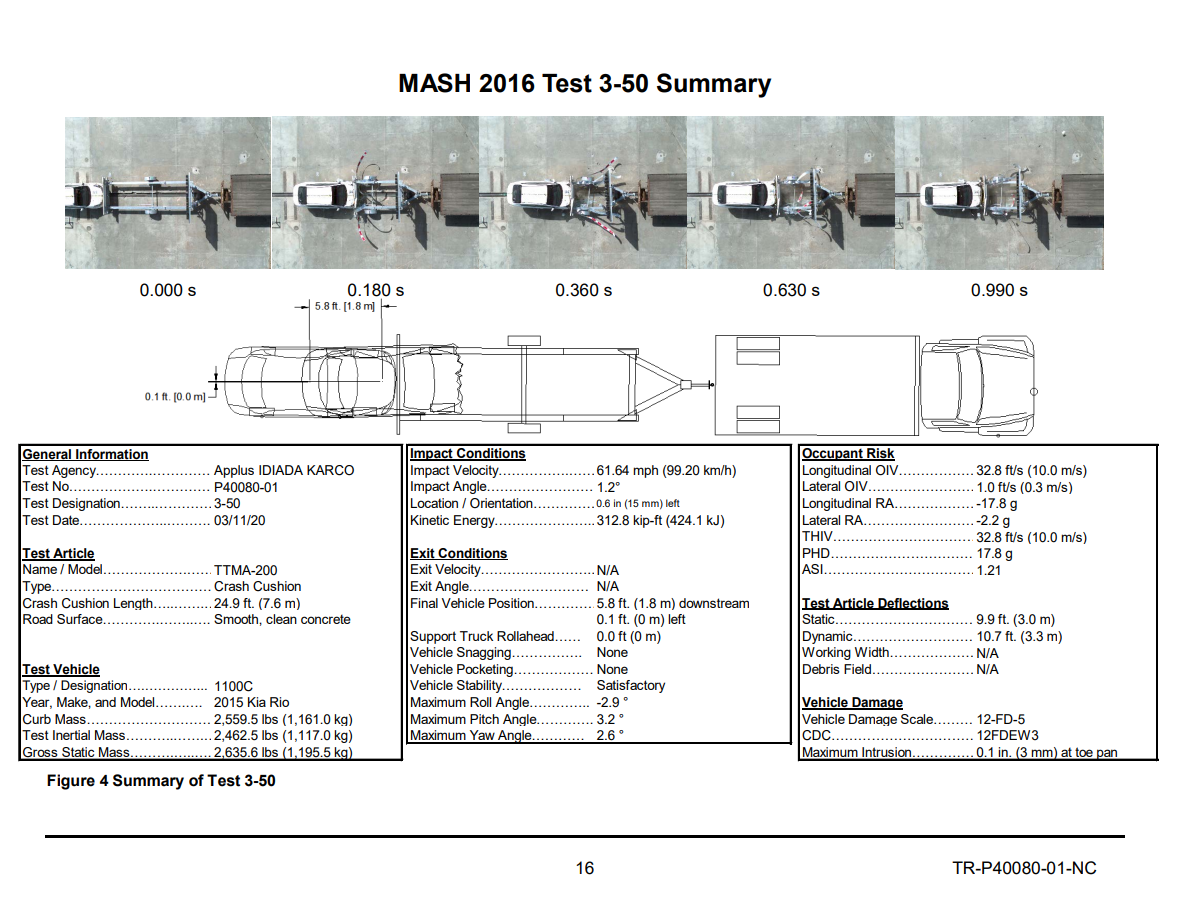

MASH Test Number: 3-50, 3-51, 3-52, 3-53, 3-54

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Gregory Industries
