Aluminum Sign Stand OGAL412

Report Number(s): TRNo. BR0248, BR0287, BR0249

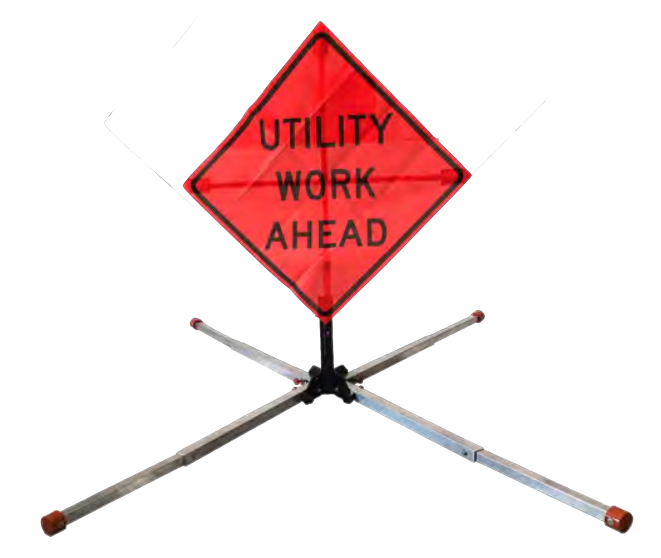

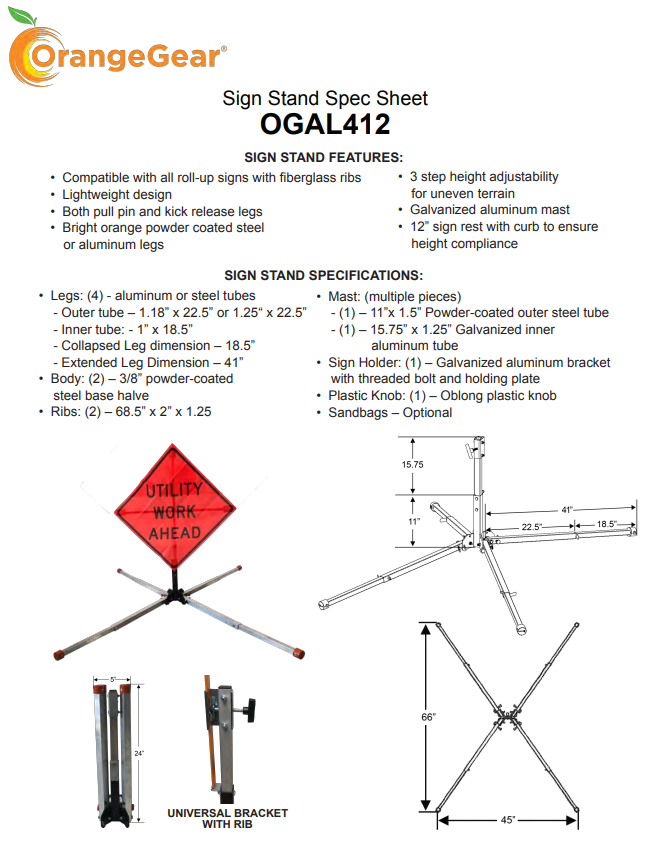

Description: The Orange Gear Aluminum Sign Stand OGAL412 test article consisted of one standalone test article with the height, base length and base width of 75 in (1,905 mm) x 66 in (1,676 mm) x 45 in (1,143 mm), respectively. The base height of aluminum sign stand is 11 in (279 mm) with an extension of15.75 in (400 mm) where sign is attached. OGAL412 dimensions become 5 in x 24 in (127 mm x 610 mm) when fully folded. Design included 0.2 in (4.66 mm) thick, 1.25 in (31.75 mm) wide, 64.8 in (1,645 mm) long vertical and horizontal cross braces to support 48 in x 48 in (1220 mm x 1220 mm) roll-up sign. All cross braces are made from aluminum. The test articles are surface mounted and required no installation. Weight of test article was approximately 13 lb (5.9 kg).

Test Level: 3

Eligibility Letter: WZ-472

MASH Test Number: 3-70, 3-71, 3-72

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Orange Gear
