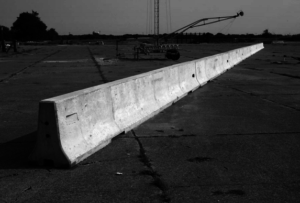

32-inch F-Shape Free-Standing Portable Concrete Barrier with Cross-Bolt

Report Number(s): 0-4692-1

Description: 32-inch F-shape free-standing portable concrete barrier with cross-bolt and 10-foot segments.

Test Level: 3

Barrier Type: F-Shape

Barrier Type: Pre-cast

System Type: Concrete Barrier

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 32"

Connection Type: None

Aesthetic: No

Scupper: No

Barrier Material: Concrete

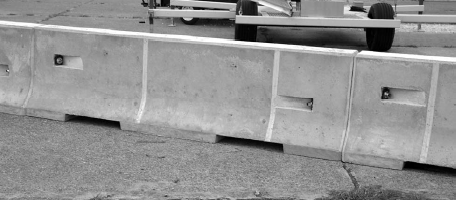

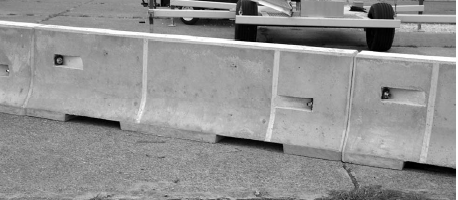

Test Article Description

Height: 32"

Section Length: 10'

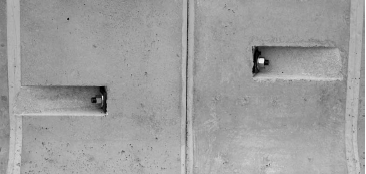

Connection Type: X-Bolt

Ground Connection: Free Standing

Deflection: 27"

Report(s):

0-4692-1
