32-inch Tall F-Shape Free-Standing Portable Concrete Barrier

Report Number(s): 607911-1&2

Description: 32 inch tall, F-shape profile, free-standing Portable Concrete Barrier

Test Level: 3

Barrier Type: F-Shape

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Washington State Department of Transportation

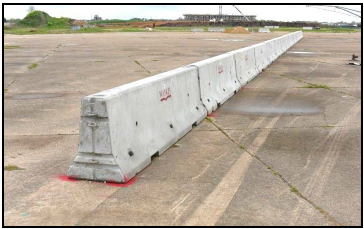

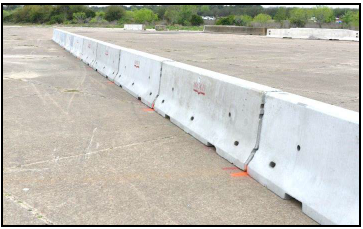

Test Article Description

Height: 32"

Section Length: 12'6"

Connection Type: Pin and Loop

Ground Connection: Free Standing

Deflection: 63.4"
