54-Inch Tall Single-Slope Concrete Barrier on a Structurally Independent Foundation

Report Number(s): 0-6948-R1

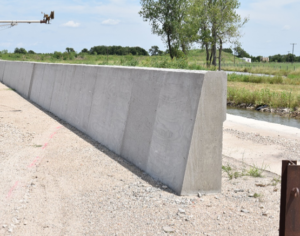

Description: The test installation consisted of three 54-inch tall segments of steel reinforced single slope concrete barrier with drilled shaft foundation. Each segment was 50 ft long and had five drilled shafts spaced 11 ft from each other. The two end shafts of each segment were spaced 3 ft from the ends. The shafts were 18 inches in diameter and 6 ft deep

Test Level: 5

Barrier Type: Single Slope

MASH Test Number: 5-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

Test Article Description

Height: 54"

Ground Connection: Yet to be updated

Test Article Description

Application: Roadside
