BarrierGuard 800 MDS

Report Number(s): NA

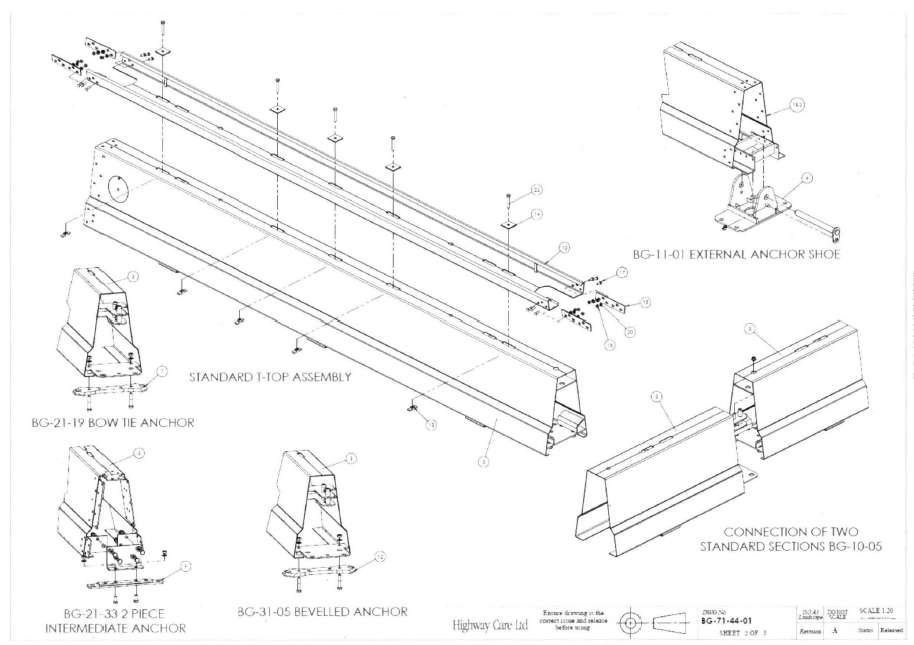

Description: BarrierGuard 800 MOS is made from a base steel barrier being BarrierGuard 800 which is formed from two step profile, thin gauge sheets of steel being welded together to form a long hollow section, there is then an additional longitudina l steel member fixed to the top the base barrier. The overall dimensions of the barrier section is 540mm wide at the base, 470mm wide at the top and 915mm high. Each longitudinal section can be joined together using a Quicklink hole and pin arrangement or a bolted joint arrangement. These barrier sections are joined together and laid out along the road surface and anchored at 6m intervals to create a longitudinal barrier system (wall).

Test Level: 3

Eligibility Letter: B286 Revised

Barrier Type: Steel

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Highway Care Ltd.

Test Article Description

Height: 36.1"

Aesthetic: No

Scupper: No

Barrier Material: Steel
