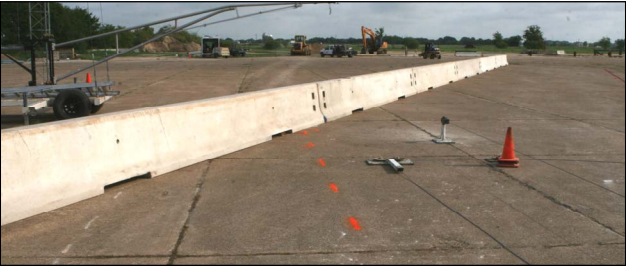

F-Shape Concrete Traffic Barrier with Quick-Bolt Connection

Report Number(s): NA

Description: Portable Concrete Barrier with Quick Bolt Connection, F-Shaped Barrier

Test Level: 3

Eligibility Letter: B190

Barrier Type: F-Shape

Barrier Type: Pre-cast

System Type: Concrete Barrier

MASH Test Number: 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Bexar Concrete Works I, Ltd.

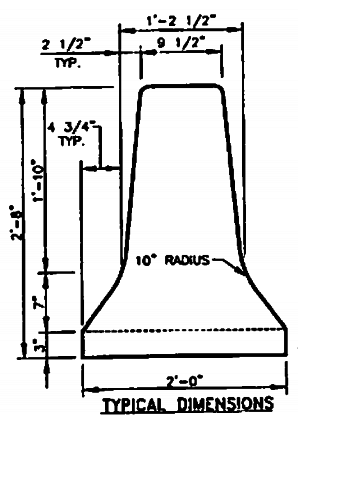

Test Article Description

Height: 32"

Post Spacing: N/A

Connection Type: None

Aesthetic: No

Scupper: No

Barrier Material: Concrete

Test Article Description

Height: 32"

Section Length: 30'

Connection Type: Quick Bolt

Ground Connection: Yet to be updated

Deflection: 31"
