Report Number(s): NA

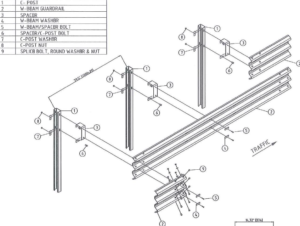

BLIDTL4C2-MASH is a guardrail barrier system comprising thrie-beam rails supported by steel posts and including steel spacers. Posts are made from hot rolled steel sheets and cold formed to a C cross section 130x80x25mm with characteristics per S355JR according to EN ISO 10025 and with a nominal thickness of 5mm. Posts are installed to an above ground height of 35,Sin (910mm] at 79in [2000mm] centres.
Test Level: 4
Eligibility Letter: B-337
MASH Test Number: 4-10, 4-11, 4-12
Evaluation: Testing + Engineering Analysis
Sponsor: INDUSTRIAS DUERO, S.L.
Test Article Description
Rail Type: Thrie Beam
Rail Thickness: S355JR with 2.5mm nominal thickness
Post Type: S355JR, with 5mm nominal thickness
Post Spacing: 6.6 ft
Blockout Type: Steel
Special Configuration: NA
