Caltrans Type 732SW Bridge Rail

Report Number(s): FHWA/CA15-2181

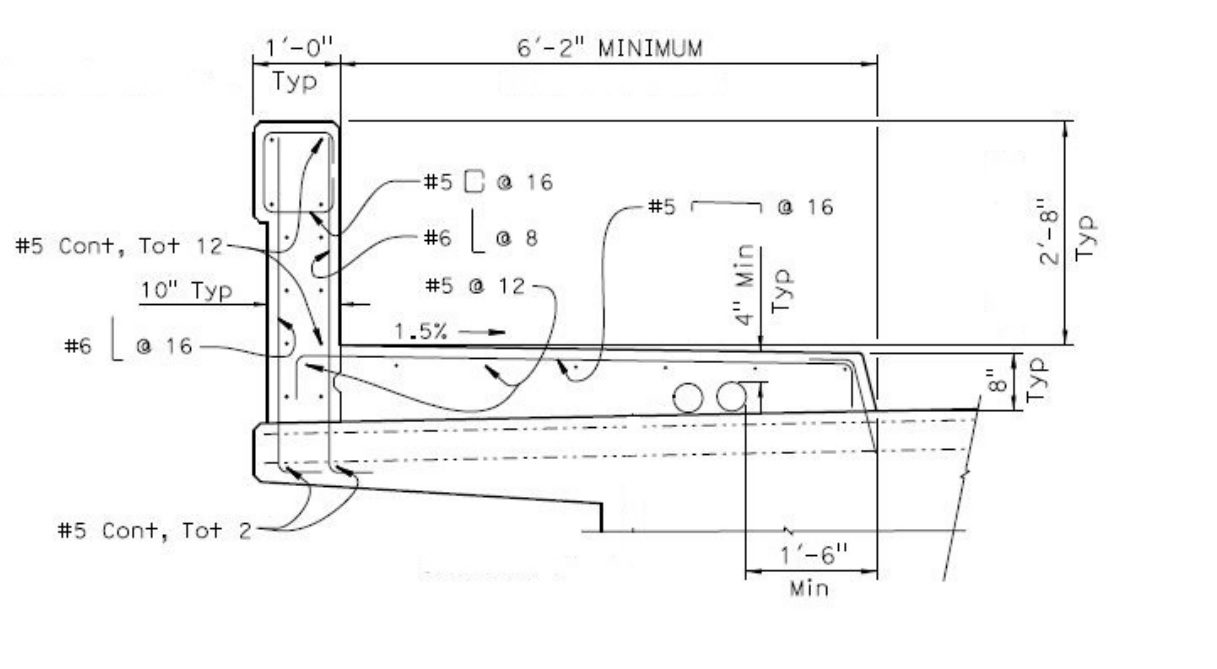

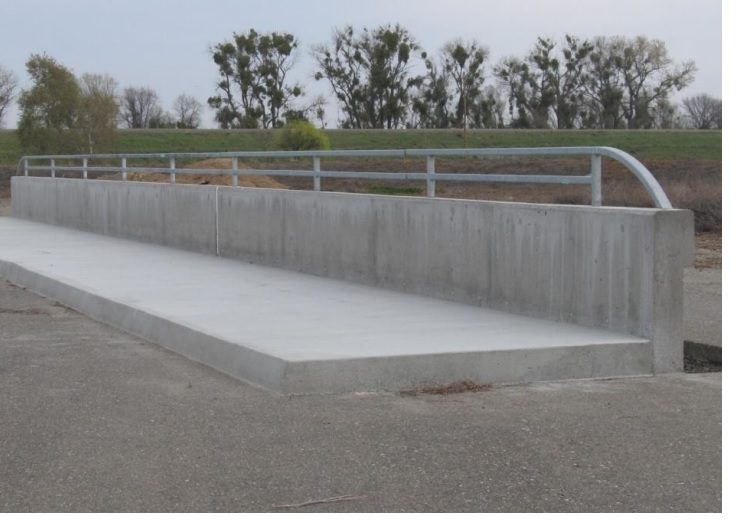

Description: Type 732SW bridge rail is a vertical, reinforced concrete wall on a sidewalk with a pedestrian steel tubular handrail or chain link fence on top (TL-2).

Test Level: 2

Eligibility Letter: B259

Barrier Type: Vertical

MASH Test Number: 2-10, 3-11 (in lieu of 2-11)

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: California Department of Transportation

Test Article Description

Height: 48"

Deck Thickness: 8"

Test Article Description

Material: Combination

Mounting Type: Deck

Aesthetic: Yes

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): Yes
