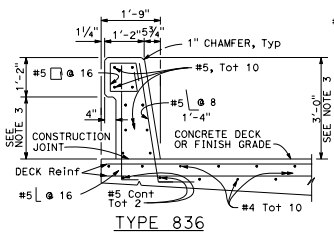

Concrete Barrier Type 836 Vehicular Traffic Railing

Report Number(s): None

Description: Caltrans type 836 single slope bridge rails. The rail is not tested, crashworthiness evaluated based on other testing and structural load analysis. Design based on TTI type SSTR.

Test Level: 4

Barrier Type: Single Slope (10.8 deg)

MASH Test Number: TL-4 (Not tested, evaluated based on other testing and structural load analysis)

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Sponsor: California Department of Transportation
