Custom Pack 4800 Delineator

Report Number(s): NA

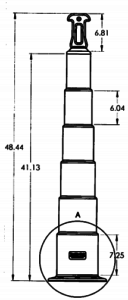

Description: Delineator with a height of 48-inches and a hexagonal base. Composed of a blend of high-density polyethylene(HDPE) and low density polyethylene (LDPE). The delineator has a variable diameter. The top section of the delineator has a diameter of 4.4-inches and the bottom section of the delineator has a diameter 7.5-inches. The hexagonal base has a width of 15-inches.

Test Level: 3

Eligibility Letter: WZ347

MASH Test Number: 3-71, 3-72

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Custom-Pak, Inc.

Test Article Description

Height: 57.6"

Section Length: Yet to be updated"

Connection Type: Yet to be updated

Report(s):

wz347
