Defender 100LDS

Report Number(s): BR0149 & BR0140

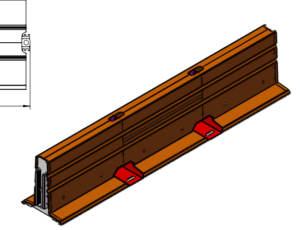

Description: The Safe Barriers Defender 100LDS is a steel longitudinal barrier which measures 3900 mm long, 800 mm tall, with a 680 mm wide flange at the bottom and a 200 mm width at the top of the barrier. The barriers have four holes for an anchor pin to be inserted in, two holes measure 1,275 mm from the upstream edge of the barrier and the other two holes measure 1,275 mm from the downstream edge of the barrier. Each barrier is pinned to the ground in two locations using a removable RoadLoc RL45-M24-330 anchor rod, nut, and plate washer. Each barrier has 1 anchor on the traffic side and 1 anchor on the non-traffic side which are 13 in. deep and 1 in. diameter filled with HILTI HY-200 epoxy. The threaded rod is epoxied into the asphalt and granular subbase, at 0 degrees from plumb vertical into the 3.5 in thick asphalt pavement. The barrier weighs 318 kg individually and is able to connect to other barriers through male and female joints which are locked together with a locking pin placed between the two. The barriers have two holes through the face of the barrier allowing for machinery to lift and transport each barrier as well as allow water to pass through to prevent flooding. These holes measure 150mm tall x 220mm wide. These holes are also where each of the anchor pin holes are located.

Test Level: 3

Eligibility Letter: B-388

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Safe Barriers PTE LTD
