DEVELOPMENT OF A MASH TEST LEVEL 4 STEEL, SIDE-MOUNTED, BEAMAND-POST, BRIDGE RAIL

Report Number(s): TRP-03-410-20

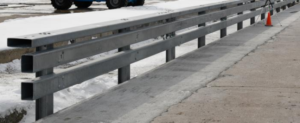

Description: A new steel, side-mounted, beam-and-post, bridge rail was designed, crash-tested, and evaluated according to MASH 2016 for Test Level 4. It consisted of three tubular steel rail elements supported by W 6x15  steel posts mounted to the exterior, vertical edge of the concrete deck and spaced at 8 ft on centers.

Test Level: 4

Barrier Type: Steel Post and Beam

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Illinoi & Ohio Department of transportation
