Cumberland Barrier, Inc. Emergency Median Access Barrier System (EMA)

Report Number(s): NA

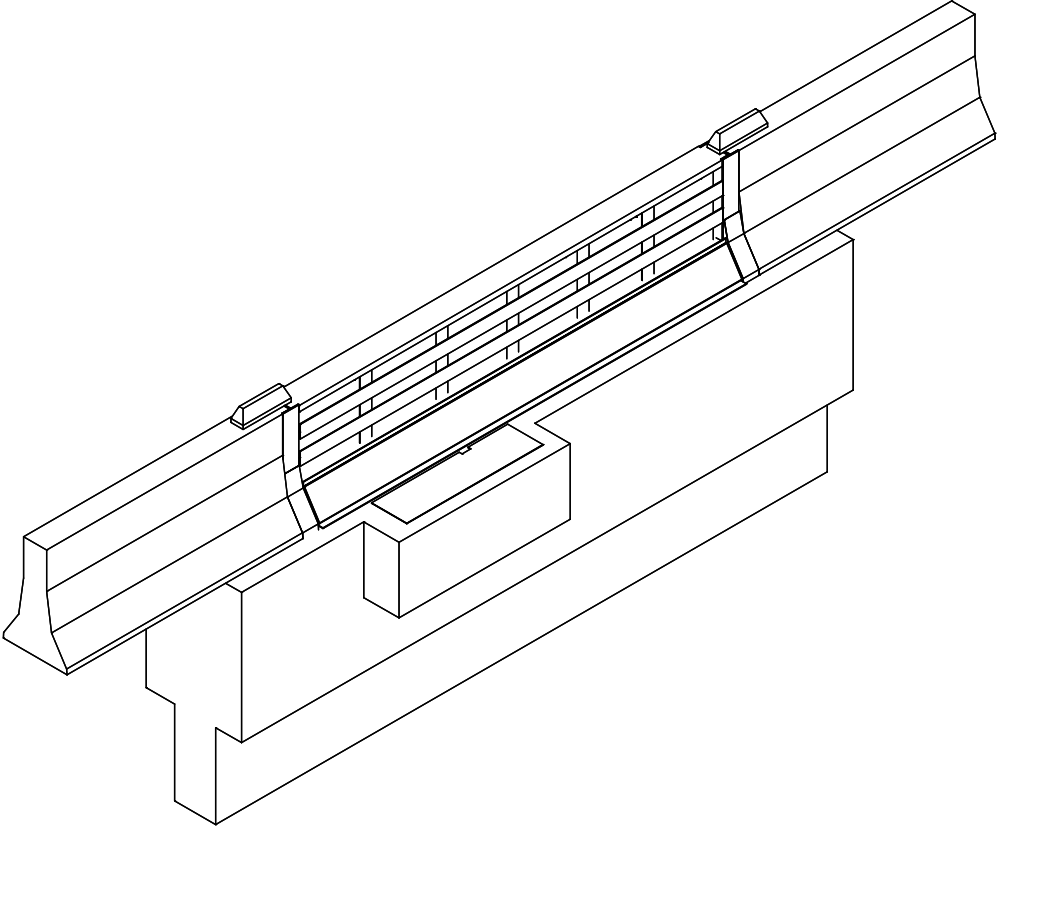

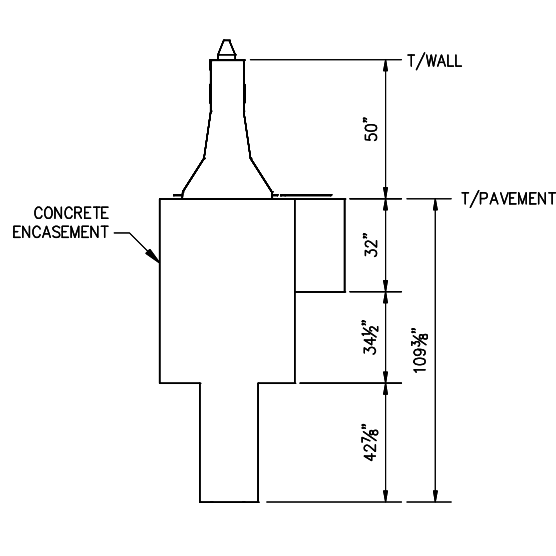

Description: EMA allows access through a 50-inch concrete median barrier. The gate is an 18 feet long continuous steel fabrication with no splices except at the extreme ends where the gate’s horizontal members slide up and down between the flanges of the W12 x 40 end posts. The gate has an embedded concrete foundation roughly 26 feet long and 9 feet deep.

Test Level: 3

Eligibility Letter: B216

Barrier Type: Concrete and steel

MASH Test Number: 3-21

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Cumberland Barrier, Inc.

Test Article Description

Height: 50"

Aesthetic: No

Scupper: No

Barrier Material: Concrete and steel
