Ezy-Guard Heavy Duty W-Beam

Report Number(s): NA

Description: 29-inch and 31-inch high w-beam guardrail system with Z-shaped posts spaced at 78.75"

Test Level: 3

Eligibility Letter: B229

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Ingal Civil Products

Test Article Description

Height: 29"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

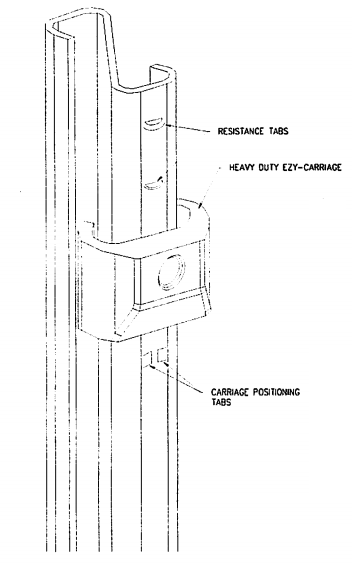

Post Type: EZY-Guard Heavy Duty Z-sections

Material: Steel

Post Total Length: 78"

Post Spacing: 6'-6"

Blockout Type: None

Blockout Depth: None"

Aesthetic: No

Application: Other

Special Configuration: None
