Ezy-Guard Smart, MASH
Report Number(s): NA
Description: Ezy-Guard Smart is a narrow, guardrail barrier system comprising standard w-beam rail supported by steel posts and sliding carriages.
Test Level: 3
Eligibility Letter: B247
MASH Test Number: 3-10, 3-11
Proprietary/Non-proprietary: Proprietary
Pass/Fail: Pass
Evaluation: Full-Scale Crash Testing
Sponsor: lngal Civil Products

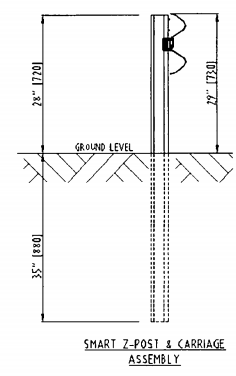

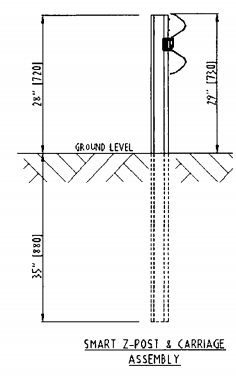

Test Article Description
Height: 28"
Rail Type: W-Beam
Rail Thickness: 12-Gauge
Post Type: Ezy-Guard Z-Posts
Material: Steel
Post Total Length: 63"
Post Spacing: 6' 3"
Blockout Type: None
Blockout Depth: None"
Aesthetic: No
Special Configuration: None
Report(s):
