MGS Offset 6 ft behind 6-in. High Curb

Report Number(s): TRP-03-237-10

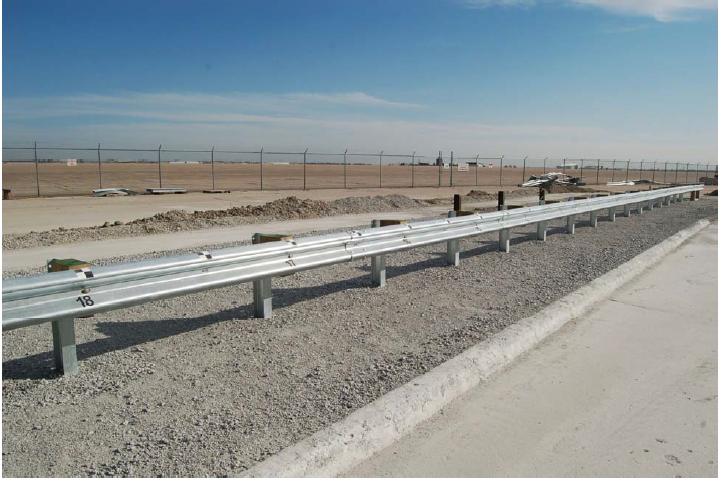

Description: MGS guardrail supported by steel posts and positioned 6 ft behind a 6-in. tall, AASHTO Type B curb.

Test Level: 2

MASH Test Number: 2-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Midwest States Regional Pooled Fund Program

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: W6 x 8.5

Material: Steel

Post Total Length: 72"

Post Spacing: 6' 3"

Blockout Type: Wood

Blockout Depth: 12"

Aesthetic: No

Special Configuration: Curb

Report(s):

TRP-03-237-10
