G3 Weak Post Box-Beam Guardrail
Report Number(s): NCHRP Project 22-14(3)

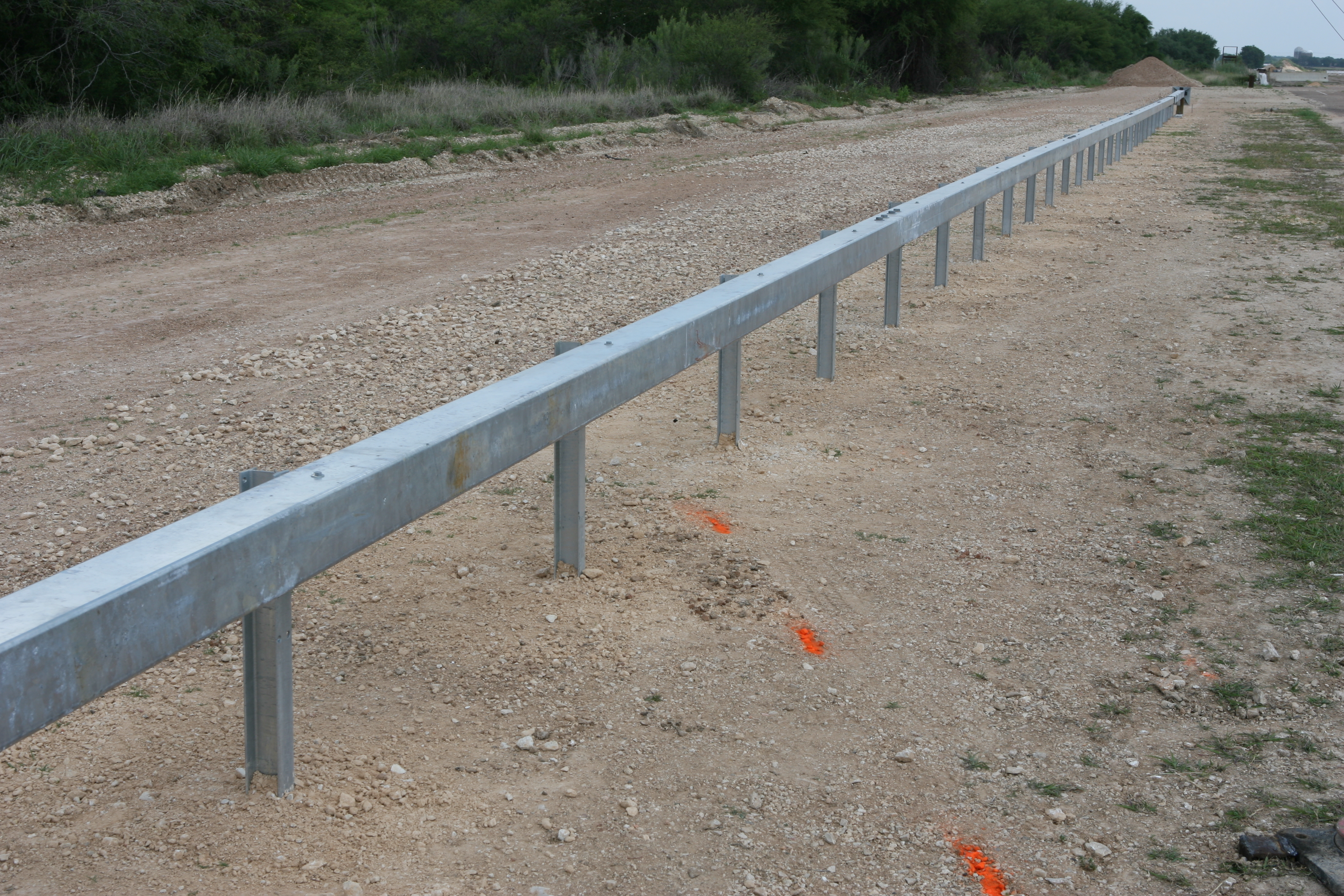

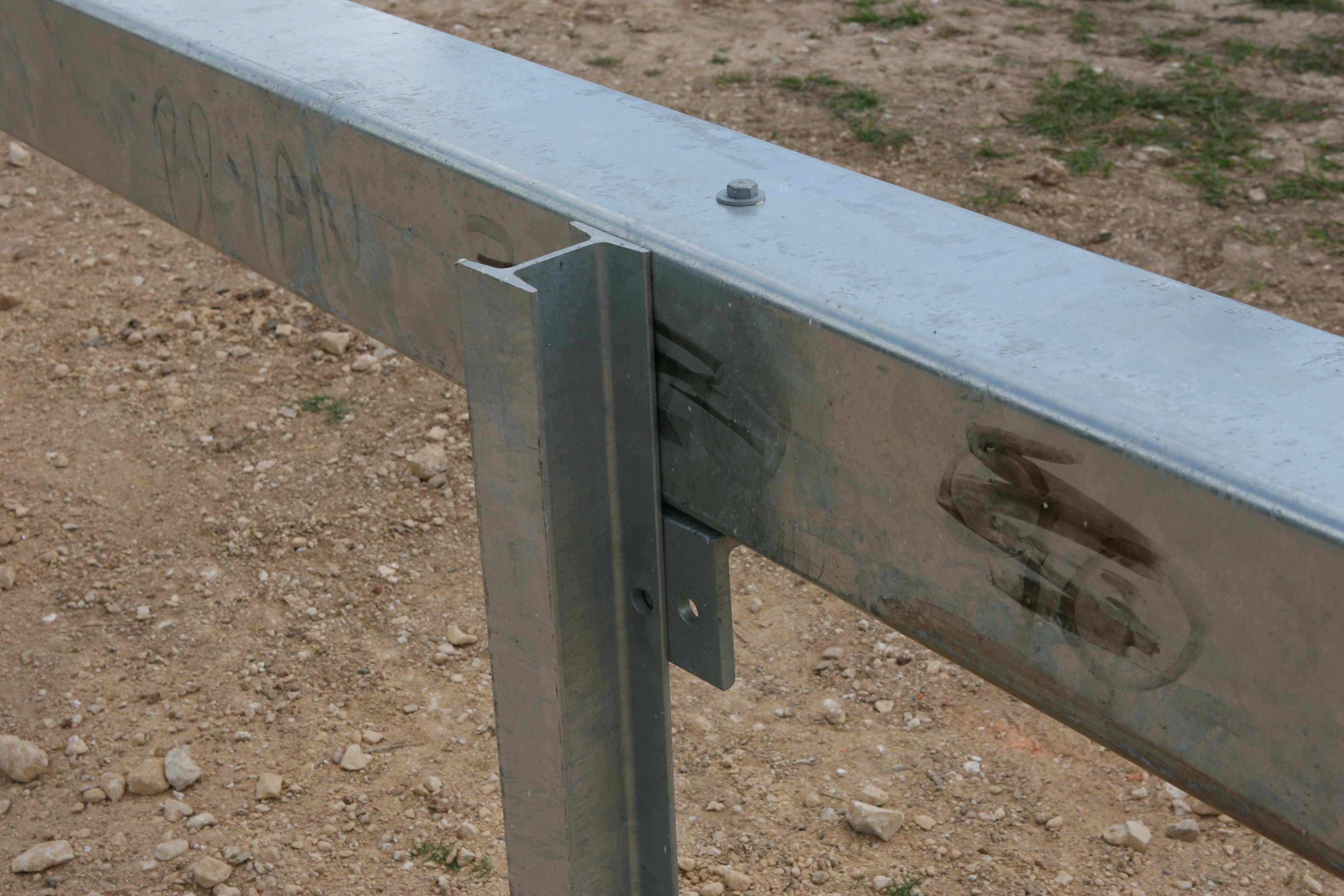

Description: TS6x6x3/16 tubular rail attached to S3x5.7 steel posts at 27-in height. Post spaced at 6-ft on center
Test Level: 3
MASH Test Number: 3-11
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Full-Scale Crash Testing
Sponsor: National Cooperative Highway Research Program
Test Article Description
Height: 27"
Rail Type: Box-Beam
Rail Thickness: TS 6" x 6" x 3/16"
Post Type: S3 x 5.7
Material: Steel
Post Total Length: 65"
Post Spacing: 6'
Blockout Type: None
Blockout Depth: None"
Aesthetic: No
Application: Other
Special Configuration: None
Report(s):
NCHRP Project 22-14(3) (NCHRP 157 Web Version):
http://www.trb.org/Publications/Blurbs/163968.aspx
