HDOT 34” Tall Aesthetic Concrete Bridge Rail

Report Number(s): NA

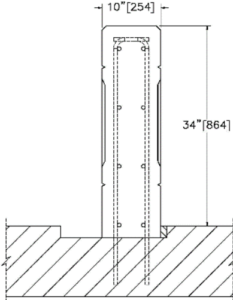

Description: This aesthetic concrete bridge rail contained five concrete barrier segments consisting of two 11-ft long end segments and three 22-ft long interior barrier segments. The bridge rail was 34 in. tall relative to the traffic-side tarmac and 10 in. wide at the top and the bottom.

Test Level: 3

Eligibility Letter: B-345

Barrier Type: Aesthetic

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Hawaii Department of Transportation

Test Article Description

Height: 34"

Test Article Description

Material: Concrete

Mounting Type: Deck

Aesthetic: Yes

See Through: NA

Retrofit: No

Combo. (Veh/Ped): No
