HighwayGuard LDS TL-4

Report Number(s): NA

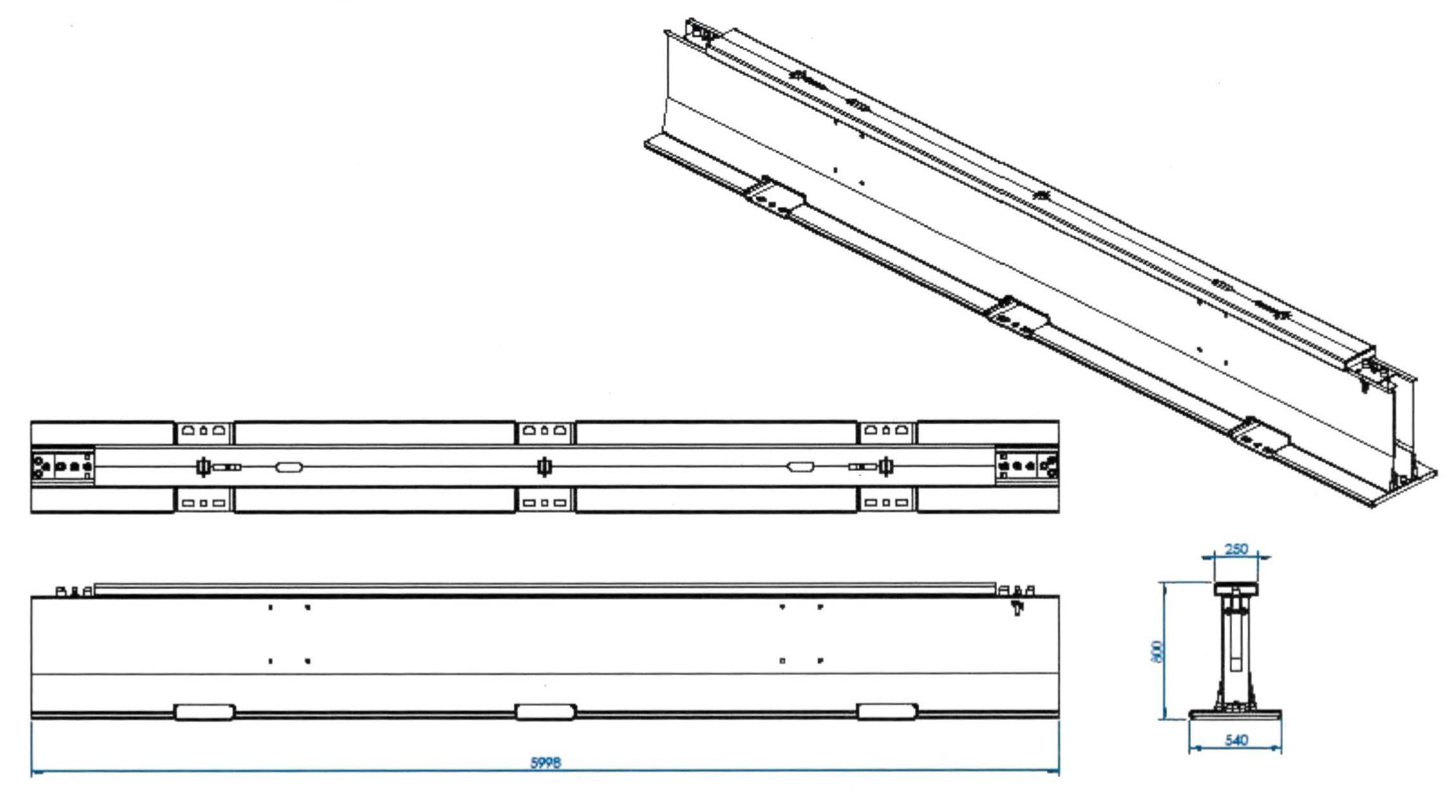

Description: HighwayGuard is a steel barrier formed from two profiled, thin gauge sheets being welded together along the join at the top, and to feet at the base, to form a long hollow section, the overall dimensions of each barrier section is 540mm wide at the base, 250mm wide at the top, 800mm high and 6,000mm long

Test Level: 4

Eligibility Letter: B-331

Barrier Type: Portable longitudinal steel barrier

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Highway Care Ltd.

Test Article Description

Height: 32"

Connection Type: T-connector

Ground Connection: Pinned
