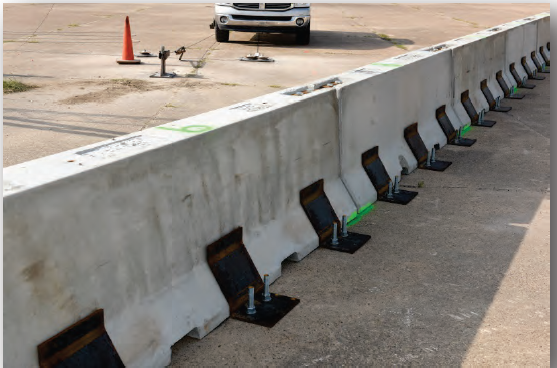

Indiana Anchored TCB with Wedge Anchored Studs

Report Number(s): 690900-IND2

Description: 31-inch tall  Indiana anchored TCB with wedge anchored studs; 31-inch TCB with Wedge Anchored Studs and modified top connection is also avaliable

Test Level: 3

Eligibility Letter: B258

Barrier Type: F-Shape

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Indiana Department of Transportation

Test Article Description

Height: 31"

Section Length: 10'

Connection Type: J-J-Hooks

Ground Connection: Bent plate anchor brackets

Deflection: 11.9"
