Lake Pontchartrain Causeway Rail (46″ tall)

Report Number(s): 690900-GEC9

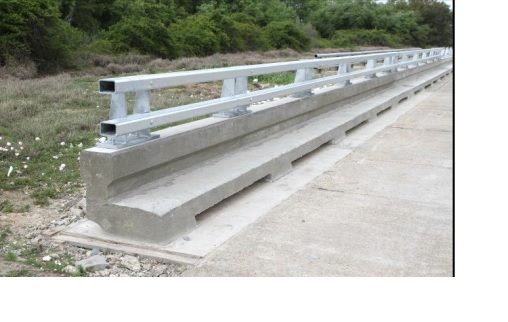

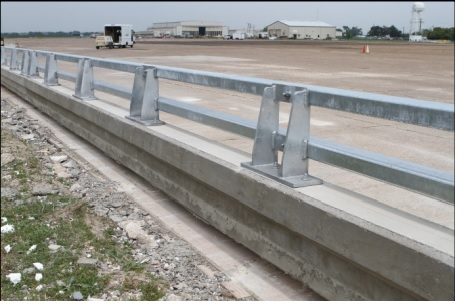

Description: 46" system comprised of 25" concrete wall, posts and two steel railings standing 9" and 21" above the wall respectively, atop a 10"curb

Test Level: 4

Barrier Type: Aesthetic

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Sponsor: Greater New Orleans Expressway Commission

Test Article Description

Height: 46"

Deck Thickness: 8"

Test Article Description

Material: Combination

Mounting Type: Curb and Parapet

Aesthetic: Yes

See Through: Yes

Retrofit: Yes

Combo. (Veh/Ped): No
