Lake Pontchartrain Causeway Rail (39″ tall)

Report Number(s): 690900-GEC1-3

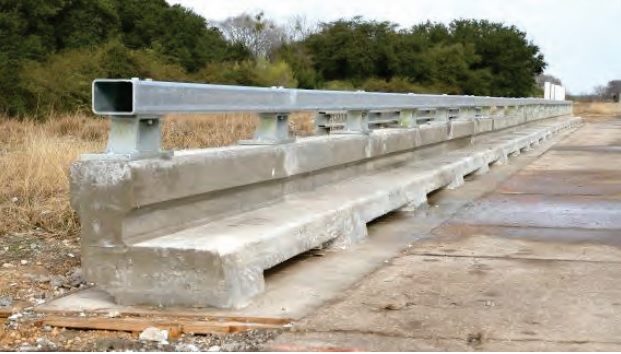

Description: 39" system comprised of 25" concrete wall, posts and single steel railing standing 14" above the parapet, atop a 10"curb

Test Level: 4

Barrier Type: Aesthetic

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Sponsor: Greater New Orleans Expressway Commission

Test Article Description

Height: 39"

Deck Thickness: 8"

Test Article Description

Material: Combination

Mounting Type: Curb and Parapet

Aesthetic: Yes

See Through: Yes

Retrofit: Yes

Combo. (Veh/Ped): No
