MASH EVALUATION OF F-SHAPED AND SINGLE SLOPE CONCRETE BARRIERS WITH DRAINAGE SCUPPERS
Report Number(s): 612831-01

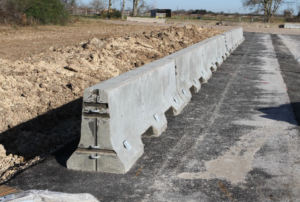

Description: The test installation consisted of 8 reinforced F-shaped concrete barriers, each 12.5 ft long, with an approximately 1 in wide gap between barriers, for a total installation length of approximately 100 ft 7 in. Each barrier segment had two 6 in tall drainage scuppers at the bottom, and three inclined slots on each side to receive anchor pins.
Test Level: 3 & 4
Barrier Type: F-Shaped & Single Slope
MASH Test Number: 3-11, 4-12
Evaluation: Testing + Engineering Analysis
Sponsor: Washington State Department of Transportation
Test Article Description
Section Length: 12'6''
Connection Type: Pin and Loop
Ground Connection: Free Standing & Pinned
Deflection: 1'9.7''(Pinned), 5'3''(Free Standing), 1.8''(Embedded Single Slope)
