MBGF With W6×8.5 Steel Posts In Rocky Terrain

Report Number(s): 0-6946-R2

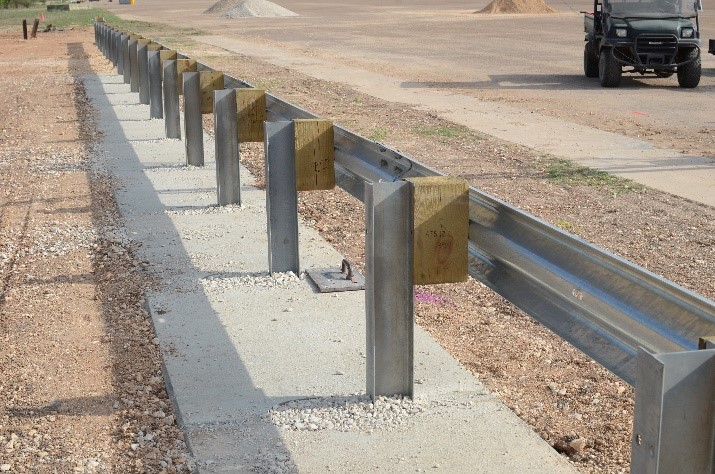

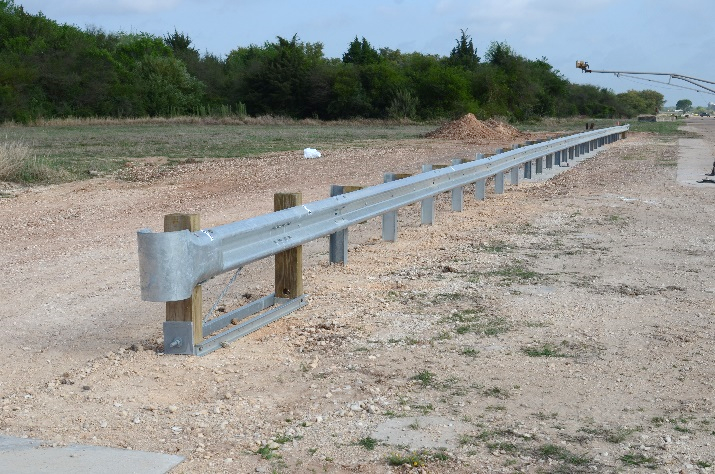

Description: W-beam guardrail supported by W6×8.5 posts augmented with routered timber blockouts, with the top edge of the rail 31 inches above the roadway, and all posts spaced at 6.25 ft.

Test Level: 3

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: W6 x 8.5

Material: Steel

Post Total Length: 75"

Post Spacing: 6' 3"

Blockout Type: Wood

Aesthetic: No

Application: Other

Special Configuration: None

Report(s):

0-6946-R2
