31-inch Tall Non-Blocked Midwest Guardrail System

Report Number(s): TRP-03-262-12

Description: 31-in non-blocked midwest guardrail system (MGS)

Test Level: 3

Eligibility Letter: B243

MASH Test Number: 3-11, 3-10

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Midwest States Regional Pooled Fund Program

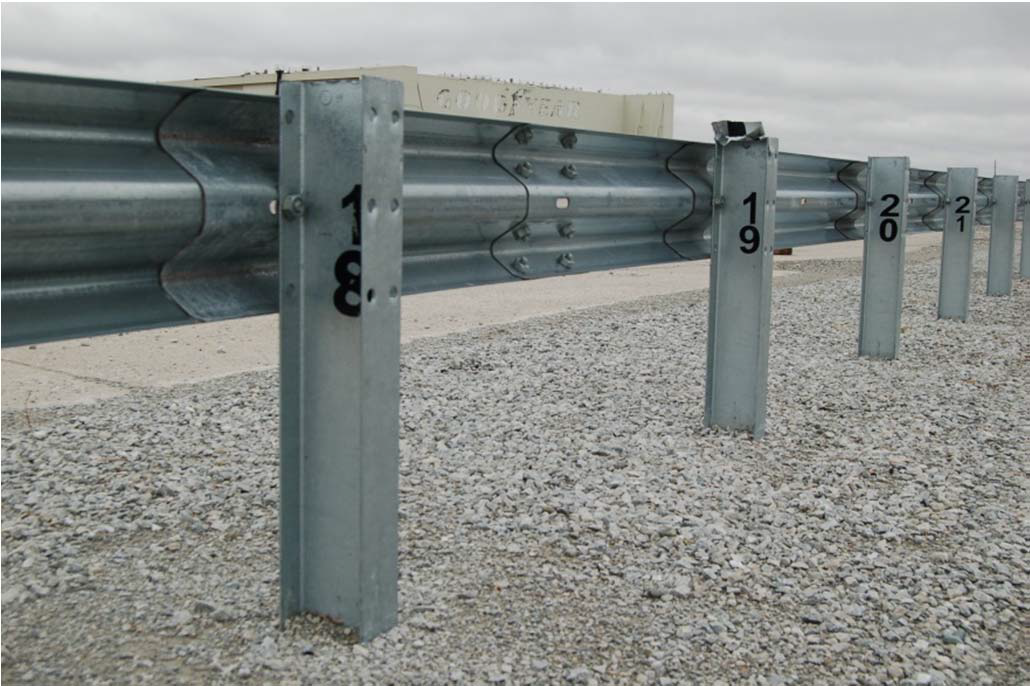

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: W6 x 8.5

Material: Steel

Post Total Length: 72"

Post Spacing: 6' 3"

Blockout Type: None

Blockout Depth: None"

Aesthetic: No

Application: Other

Special Configuration: None

Report(s):

TRP-03-262-12

b243
