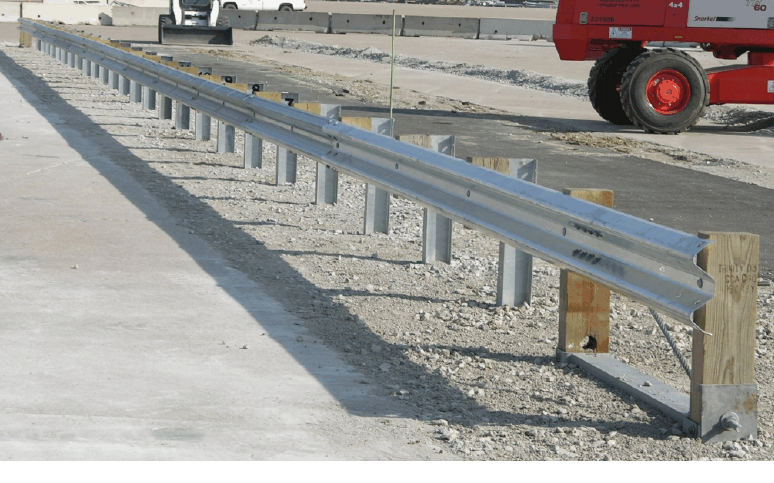

Modified G4(1S) Guardrail with 28″ C.G. Pickup Truck
Report Number(s): TRP-03-169-06
Description: 27.75″ rail high Strong-post W-beam system with splices on the posts, impacted by a 1/2 ton, 28″ C.G. pickup truck vehicle (MASH vehicle).
Test Level: 3
System Type: Guardrail
MASH Test Number: 3-11
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Full-Scale Crash Testing
Sponsor: NATIONAL COOPERATIVE HIGHWAY RESEARCH PROGRAM
Test Article Description
Height: 27.75"
Rail Type: W-Beam
Rail Thickness: 12-Gauge
Post Type: W6 x 9
Material: Steel
Post Total Length: 72"
Post Spacing: 6' 3"
Blockout Type: Wood
Blockout Depth: 8"
Aesthetic: No
Special Configuration: None
