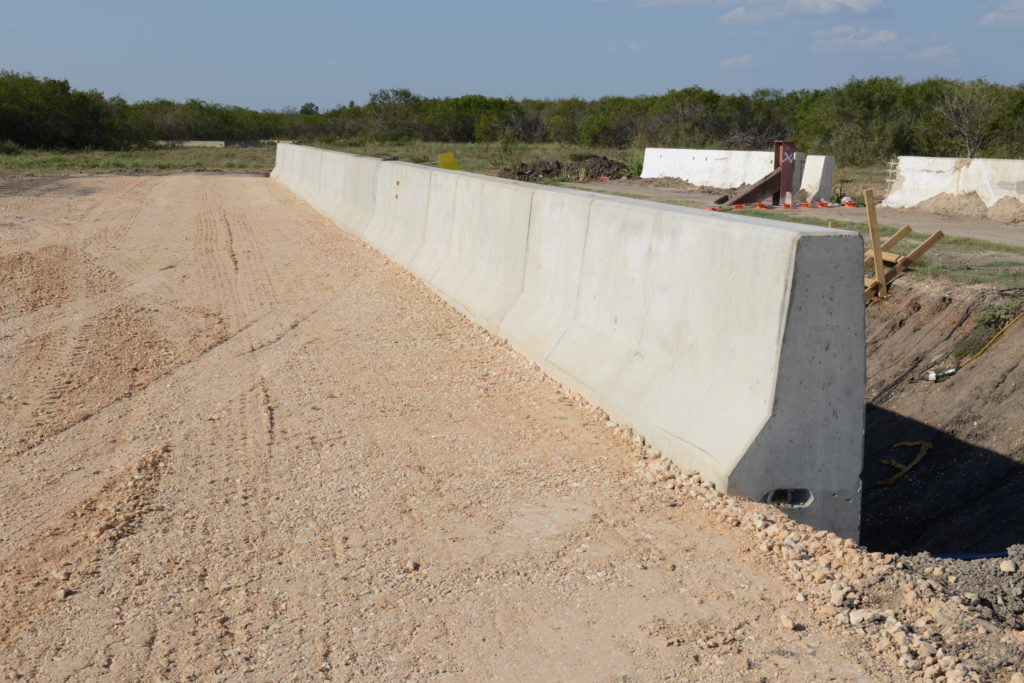

TL-5 42″ New-Jersey Barrier On MSE Wall
Report Number(s): NCHRP PROJECT 22-20(2)

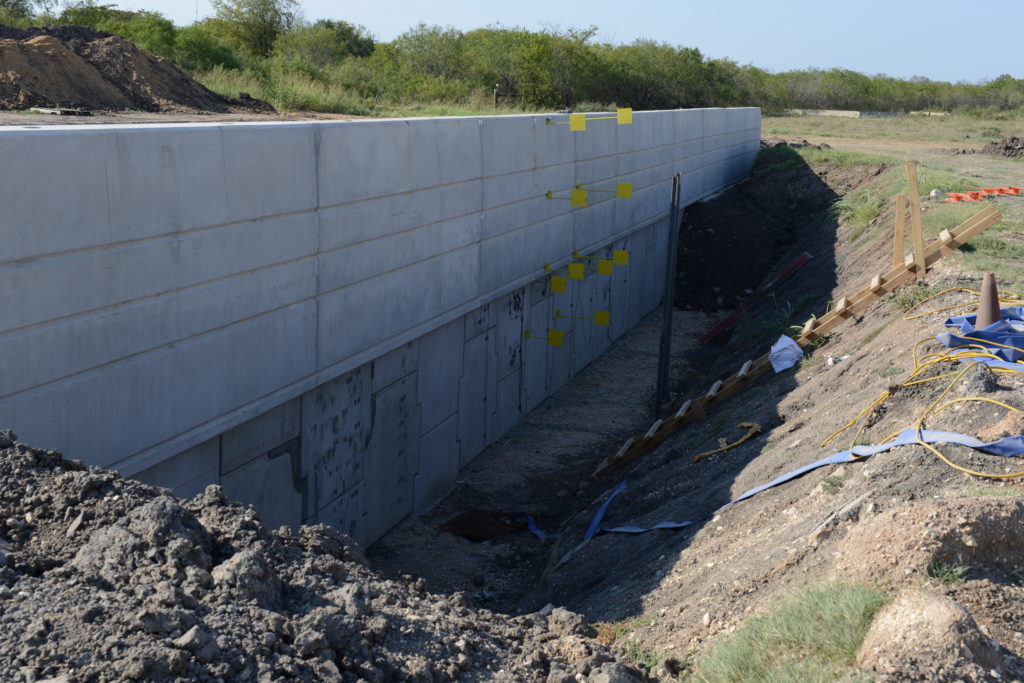

Description: 42-in tall New Jersey Barrier on a 10-ft high MSE wall with unreinforced concrete bearing pad
Test Level: 5
MASH Test Number: 5-12
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: National Cooperative Highway Research Program

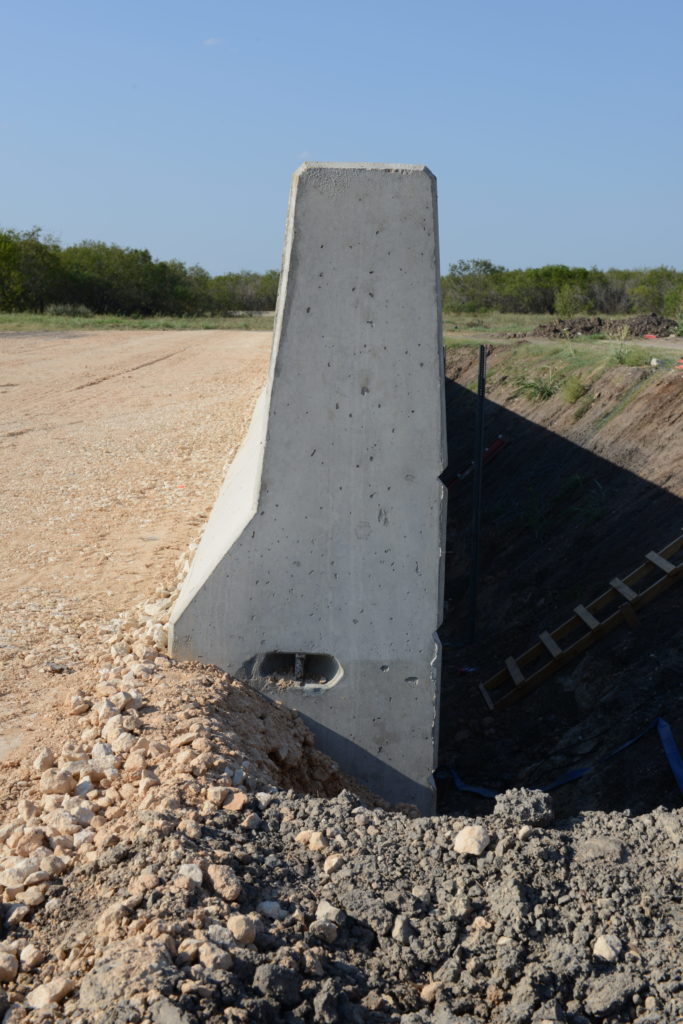

Test Article Description
Height: 42"
Top Base: 11.75"
Bottom Base: 25.5"
Ground Connection: Embedded
Test Article Description
Application: Roadside
Report(s):
http://apps.trb.org/cmsfeed/TRBNetProjectDisplay.asp?ProjectID=2735
