Non Blocked BMS2-TL3 Single Steel Guardrail
Report Number(s): NA
Description: 31-inch tall, high strength W-beam guardrail on C posts
Test Level: 3
Eligibility Letter: B250
MASH Test Number: 3-10, 3-11
Proprietary/Non-proprietary: Proprietary
Pass/Fail: Pass
Evaluation: Full-Scale Crash Testing
Sponsor: XavierC, LCC

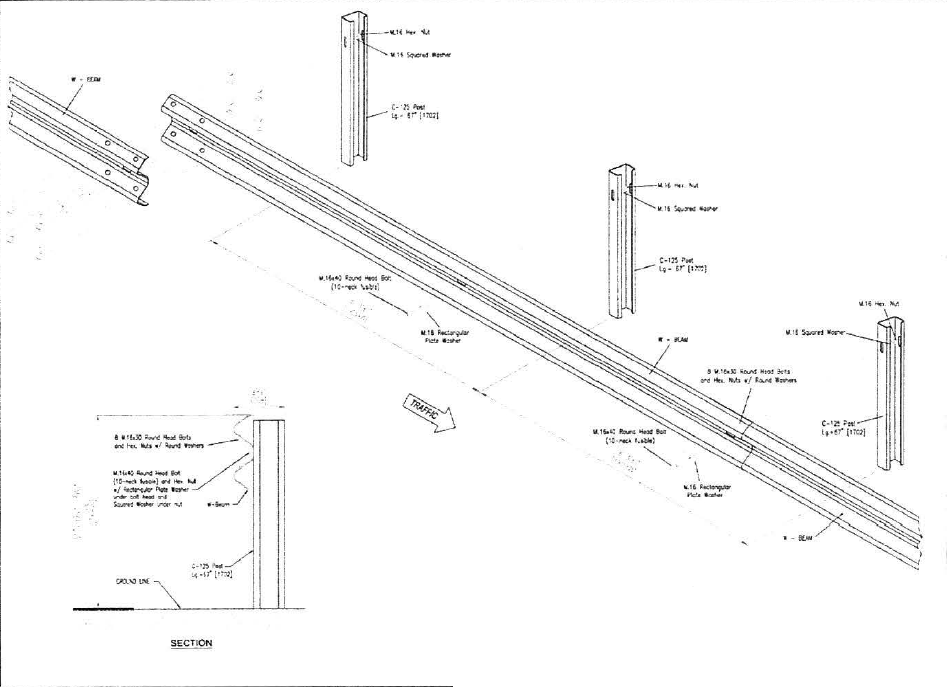

Test Article Description
Height: 31"
Rail Type: W-Beam
Rail Thickness: 12-Gauge
Post Type: C125 steel post
Material: Steel
Post Total Length: 67"
Post Spacing: 6' 3"
Blockout Type: None
Blockout Depth: None"
Aesthetic: No
Application: Other
Special Configuration: None
Report(s):
