Nu-Guard-31(5#) Barrier System

Report Number(s): NA

Description: Nu-Guard 31 with reduced post height

Test Level: 3

Eligibility Letter: B-310

MASH Test Number: 3-10,3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Nucor Steel Marion Inc.

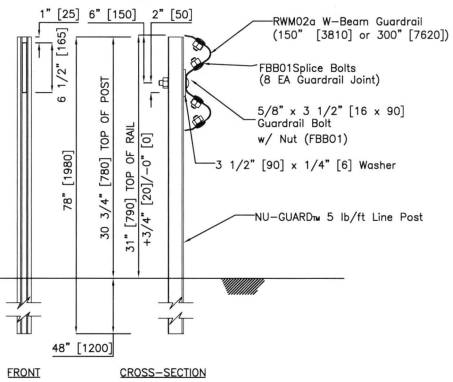

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: Yet to be Updated

Post Type: U-Shape Nugard post

Material: Steel

Post Total Length: 78"

Post Spacing: 6' 3"

Blockout Type: None

Aesthetic: No

Special Configuration: None

Report(s):

b310
