Nu-Guard-31™

Report Number(s): NA

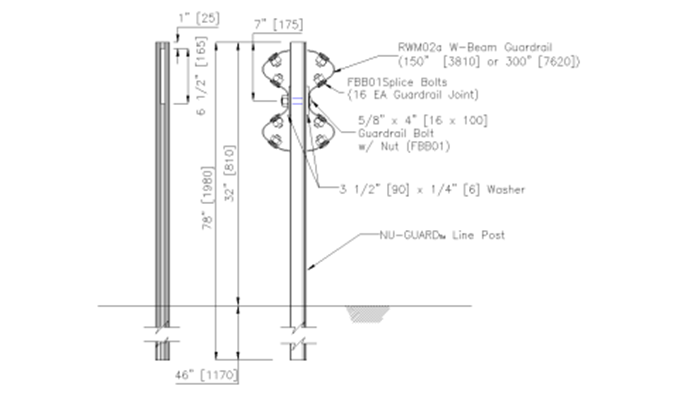

Description: Strong post (5 lb./ft. (7.45 kg/m) X 6'-6" Rib-Bak® U-CHANNEL POST, GALVANIZED OR POWDER-COATED, NUCOR GRADE SP-80), no offset blocks, splices at post. Reduces site grading and R.O.W. required, as a result of eliminated blockouts.

Test Level: 3

Eligibility Letter: B162

Barrier Type: steel

System Type: Guardrail

MASH Test Number: 31" high(3-10, 3-11), 27" high(3-11)

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Nucor Steel Marion Inc

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: Nucor Strong Posts

Material: Steel

Post Total Length: 78"

Post Spacing: 6' 3"

Blockout Type: None

Blockout Depth: None"

Aesthetic: Yes

Special Configuration: Median

Test Article Description

Height: 31"

Post Spacing: 6'3"

Aesthetic: Yes

Scupper: No

Barrier Material: Steel

Report(s):

B162
