Oregon 3-Tube Curb Mount Bridge Rail

Report Number(s): NA

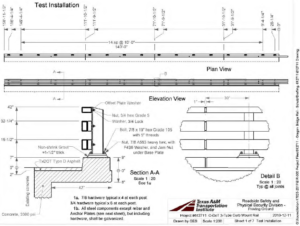

Oregon 3-Tube Curb Mount Bridge Rail consisted of an 8in thick reinforced concrete cantilevered deck and a 9in tall curb, with a 2in thick lift of asphalt on the deck. The deck and curb were 158ft 11½in long, with three 1in open joints. Steel posts, which supported 3 rectangular steel rails, were mounted on the curb. The top of the curb was at 7in above grade, and the tops of the rails were at 19½in, 32¼in, and 42in above grade.

Test Level: 4

Eligibility Letter: B-341

Barrier Type: Concrete Post and Beam

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Oregon Department of Transportation

Test Article Description

Height: 42"

Test Article Description

Material: Combination

Mounting Type: Curb

Aesthetic: No

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): No
