PennDOT PA Type 1OM Bridge Barrier

Report Number(s): Yet to be updated

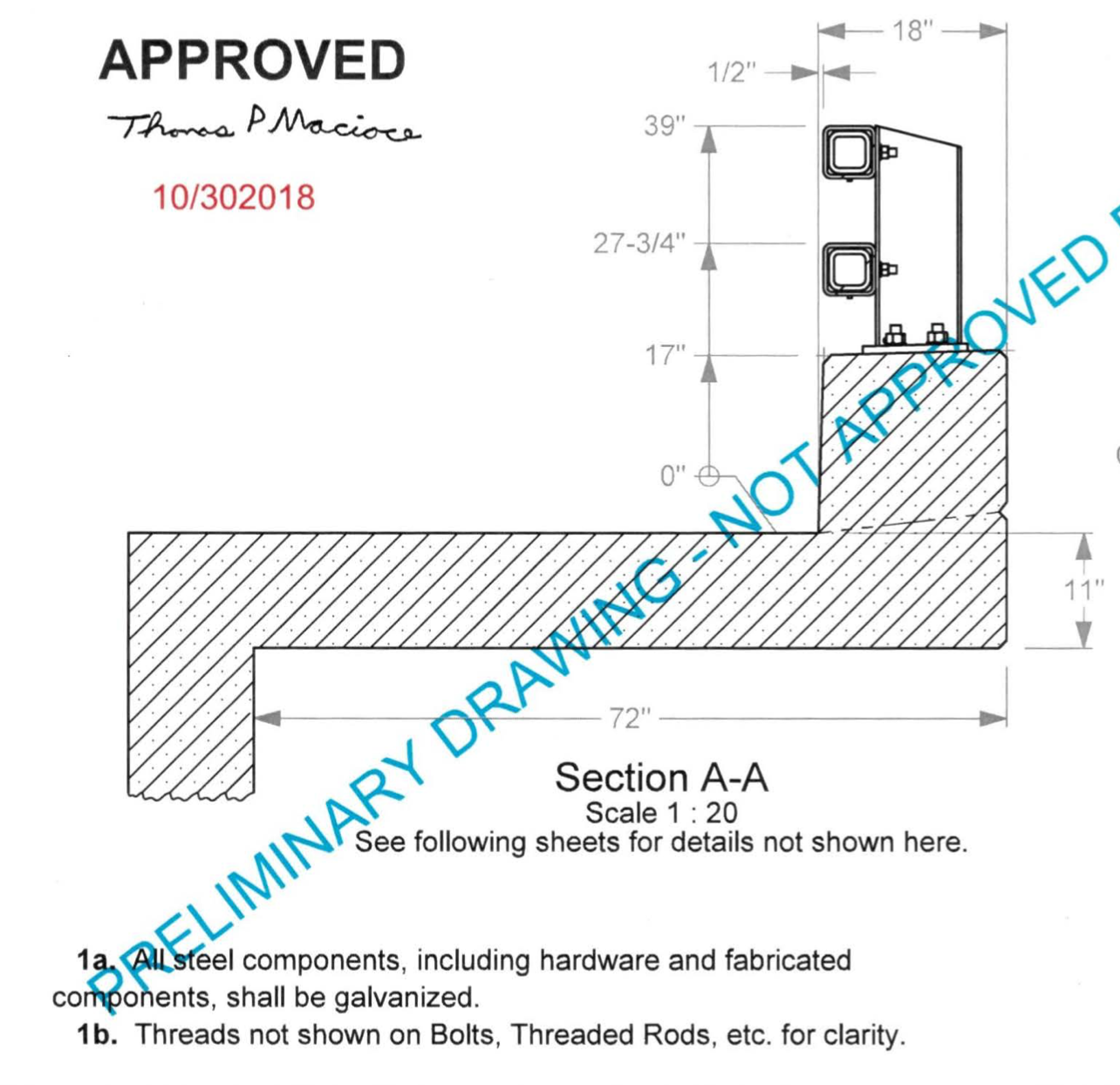

Description: PennDOT PA Type 1OM Bridge Barrier was 149 ft-10 inches long,and consisted of a reinforced concrete deck and barrier, with steel rails supported by steel posts anchored to the top of the barrier. The deck was cantilevered 72 inches, with the field side of the 18-inch wide barrier flush with the field side of the deck

Test Level: 4

Eligibility Letter: B-333

Barrier Type: steel post and railing on top of concrete parapet

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Pennsylvania Department ofTransportation

Test Article Description

Height: 39"

Test Article Description

Material: Combination

Mounting Type: Parapet

Aesthetic: No

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): No

Report(s):

b-333
