Pro-Cast 10′ Rigid TL-3 MASH Barrier (freestanding without Spacers)

Report Number(s): Test No. P43261-01, P43262-01

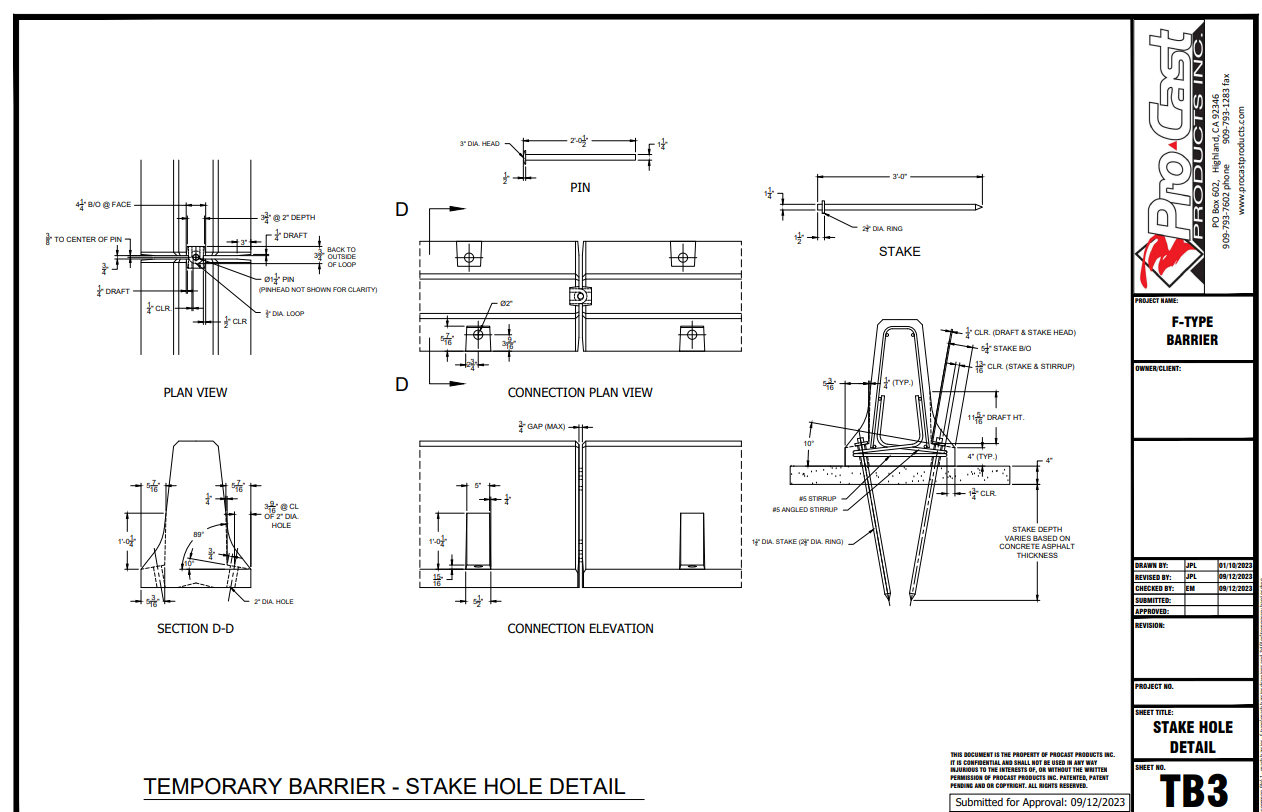

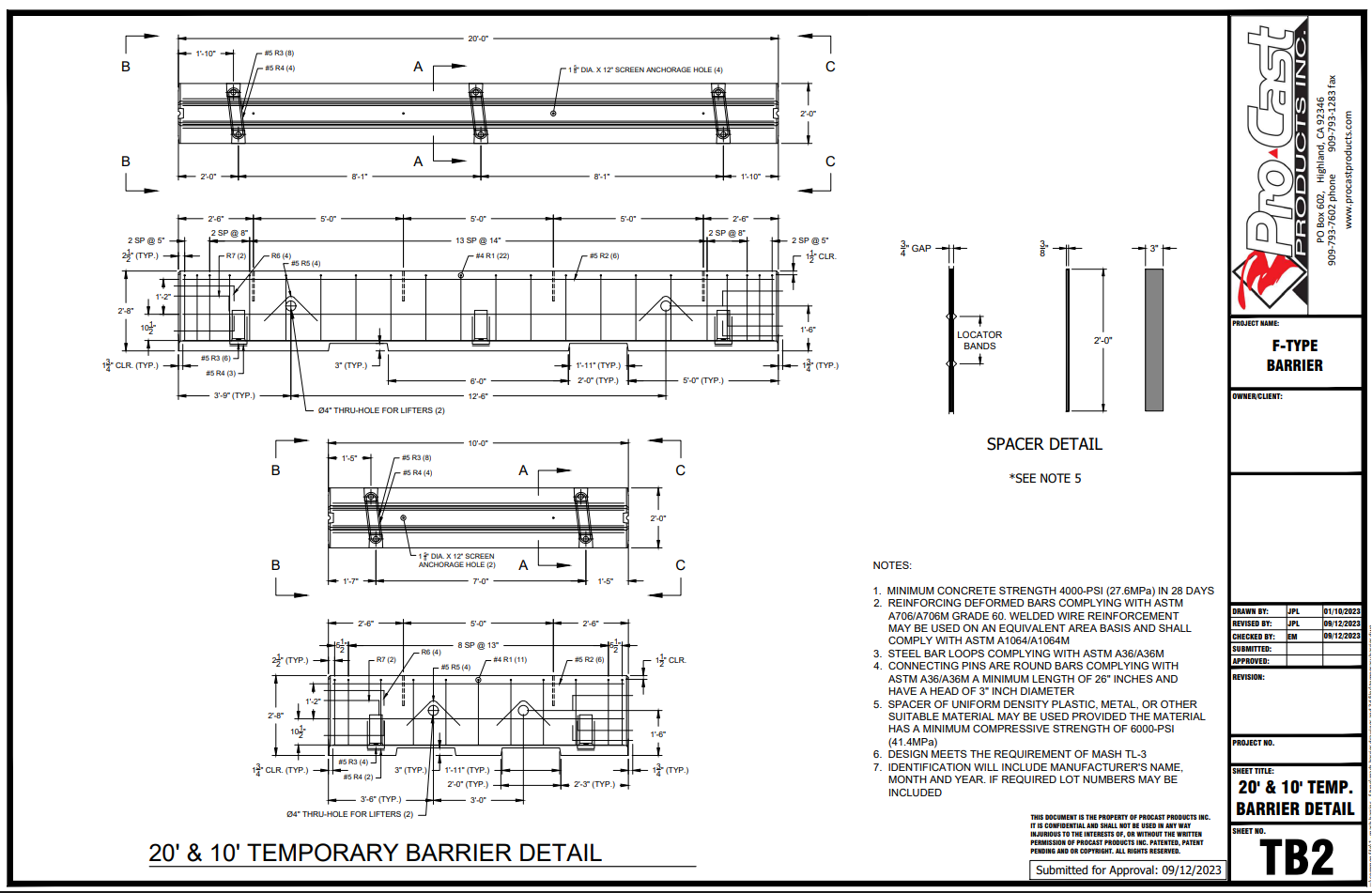

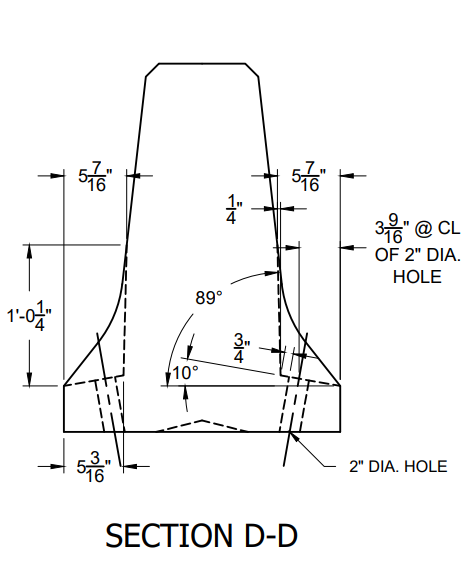

Description: The Pro-Cast 10’ Rigid TL-3 MASH Barrier is a temporary concrete F-shape profile longitudinal barrier designed to shield roadside hazards. The 10’ Freestanding Barriers are 10.0 ft. (9.1 m) long, 2.0 ft (0.6 m). wide, and 2.7 ft. (0.8 m) high.   Each 10.0 ft. (3.0 m) barrier required a minimum 28-day compressive strength of 4,000 psi (27.6 MPa). The concrete barrier utilized steel reinforcement composed of ASTM A36 Grade 60 rebar and consisted of eleven (11) #5 vertical bars, four (4) #5 loops, eight (8) #5 angled loops, and six (6) #5 longitudinal bars down the length of the barrier. In addition, each barrier also had #5 reinforcement bars at each 4.0 in. (102 mm) diameter lifting thru-hole and an assortment of #5 rebar reinforcing the stake opening. The complete section reinforcement details are shown in Appendix C: Manufacturer Documents.   The barrier sections were connected to one another with ASTM A36 0.75 in. (19 mm) steel loops embedded in each barrier which were then interlocked with a 1.25” (32 mm) diameter by 24.5 in. (622 mm) long solid steel pins.   The barriers were set on an asphalt slab 6.0 in. (152 mm) thick. A total of ten (10) freestanding barriers were used. The barrier system allows for installation of a barrier limiting and protection spacer constructed of 24.0 in. (610 mm) high by 3.0 in. (76 mm) wide by 0.375 in. (10 mm) uniform density plastic with a minimum compressive strength of 6000 psi (41.4 MPa). If utilized the spacers are placed on the ends of each barrier on the traffic side of the interconnecting pins. The spacer sits flush with the barrier if utilized. Spacers were not utilized in the testing of these 10' barriers.

Test Level: 3

Eligibility Letter: B-386

Barrier Type: F-Shape

MASH Test Number: 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Pro-Cast Products
