REBLOC 80SAH_12

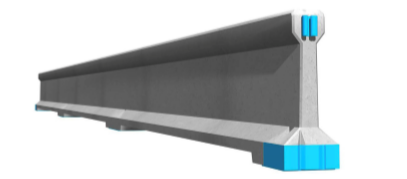

Description: The system consists of factory produced precast elements. Each element is 12.0m (472.4 in) long, 0.3m (11 .8 in) wide and 0.8m (31.5 in) high. The precast concrete elements have a cross section similar to an I-beam profile. The safety barriers are free standing. There is no anchorage to the ground, only the two terminal elements have to be anchored to the asphalt surface by using anchor bolts.

Test Level: 3

Eligibility Letter: B-360

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: REBLOC GmbH

Report(s):

B-360
