Retrofit, Low-Deflection Portable Concrete Barrier Version 1

Report Number(s): TRP-03-295-14

Description: 32" tall, 12.5ft long section length,  low-deflection TCB

Test Level: 3

Eligibility Letter: B255

Barrier Type: F-Shape

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Midwest States Regional Pooled Fund Program

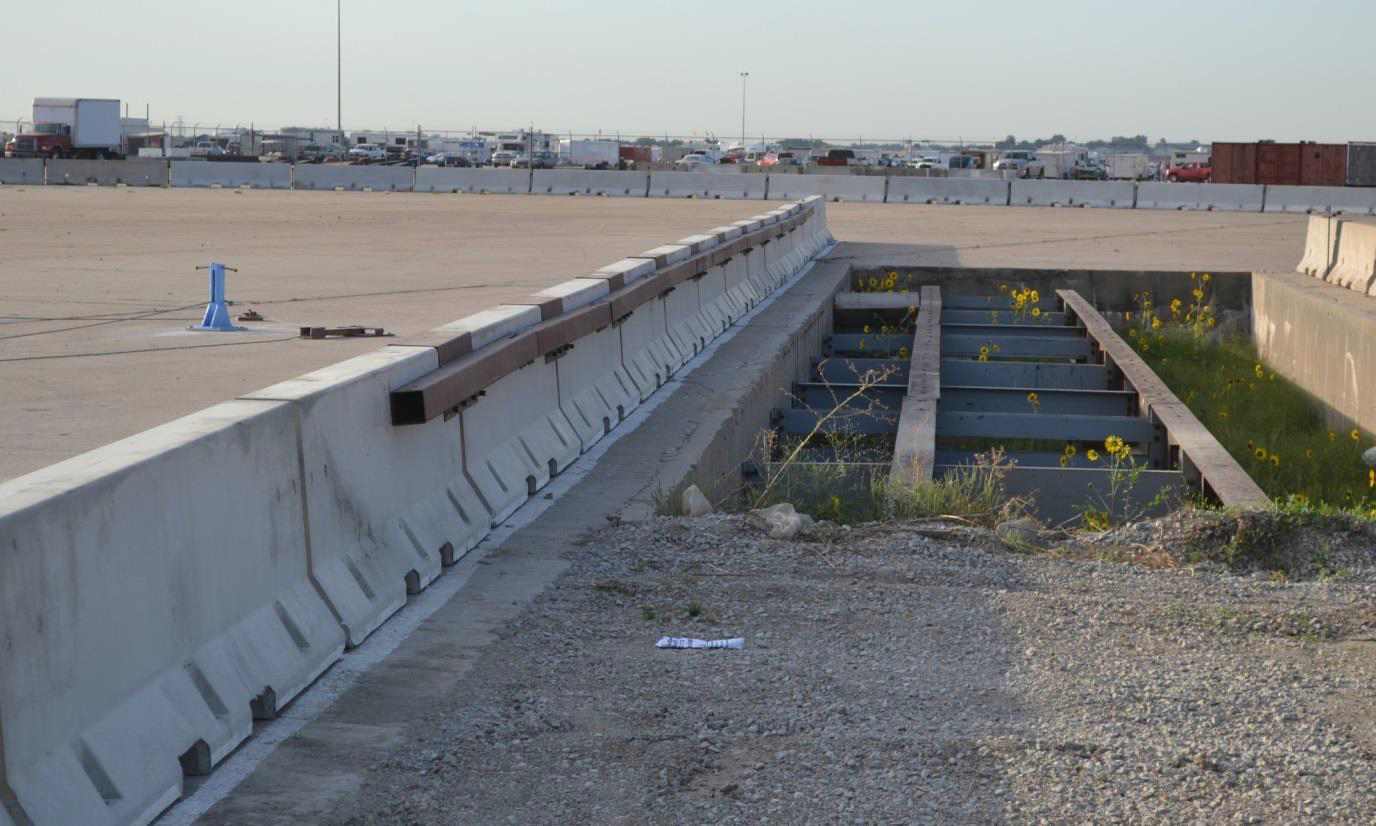

Test Article Description

Height: 32"

Section Length: 12'6"

Connection Type: Pin and Loop

Ground Connection: Free Standing

Deflection: 43"

Report(s):

TRP-03-295-14

b255
