SAFENCE 4RC-19 CC3.0

Report Number(s): R20210615-1

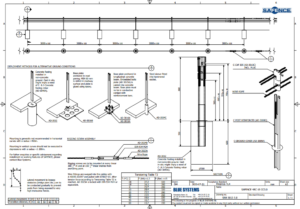

Description: The SAFENCE 4RC-19Blue Systems Cable Barrier System used in this test series consist of four 19 mm (0.75”) 3x7 strand wire rope cables. Wires are attached to the post through the central slot detail and cap assembly in the post. The cable cross-section diameter is 20 mm and the wire ropes were attached at heights of 570 mm, 670 mm,780 mm, and 800 mm above ground level. Cable height is measured from center of cable to ground. The overall barrier length was 188.4 m. The system should be installed with post spacing of 3 meter. All posts should be installed in concrete foundation 600 mm deep x 300 mm diameter into AASHTO standard soil. Test 4-10 and 4-11 were conducted at Holmes Solution. This Request for Eligibility Form is for those two tests. Test 4-12 were conducted at VTI, and a Request for Eligibility Form will be submitted for that test to complete the test series for TL4.

Test Level: 4

Eligibility Letter: B-368

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Blue Systems AB
