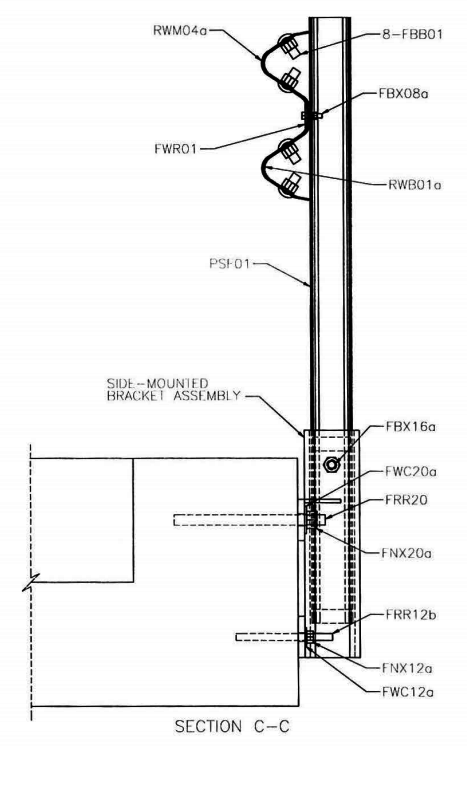

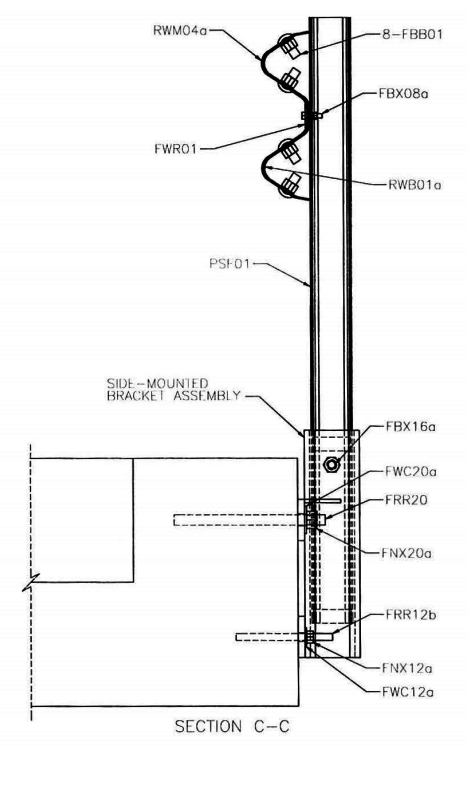

Side-Mounted Weak-Post Guardrail Attached to Culvert

Description: It is an adaptation of the weak-post MGS bridge rail that allows for attachment to the outside face of the culvert headwalls.

Test Level: 3

Eligibility Letter: B-264

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Sponsor: Midwest Roadside Safety Facility

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: S3 x 5.7

Material: Steel

Post Total Length: 44"

Blockout Type: None

Blockout Depth: None"

Aesthetic: No

Application: Culvert
