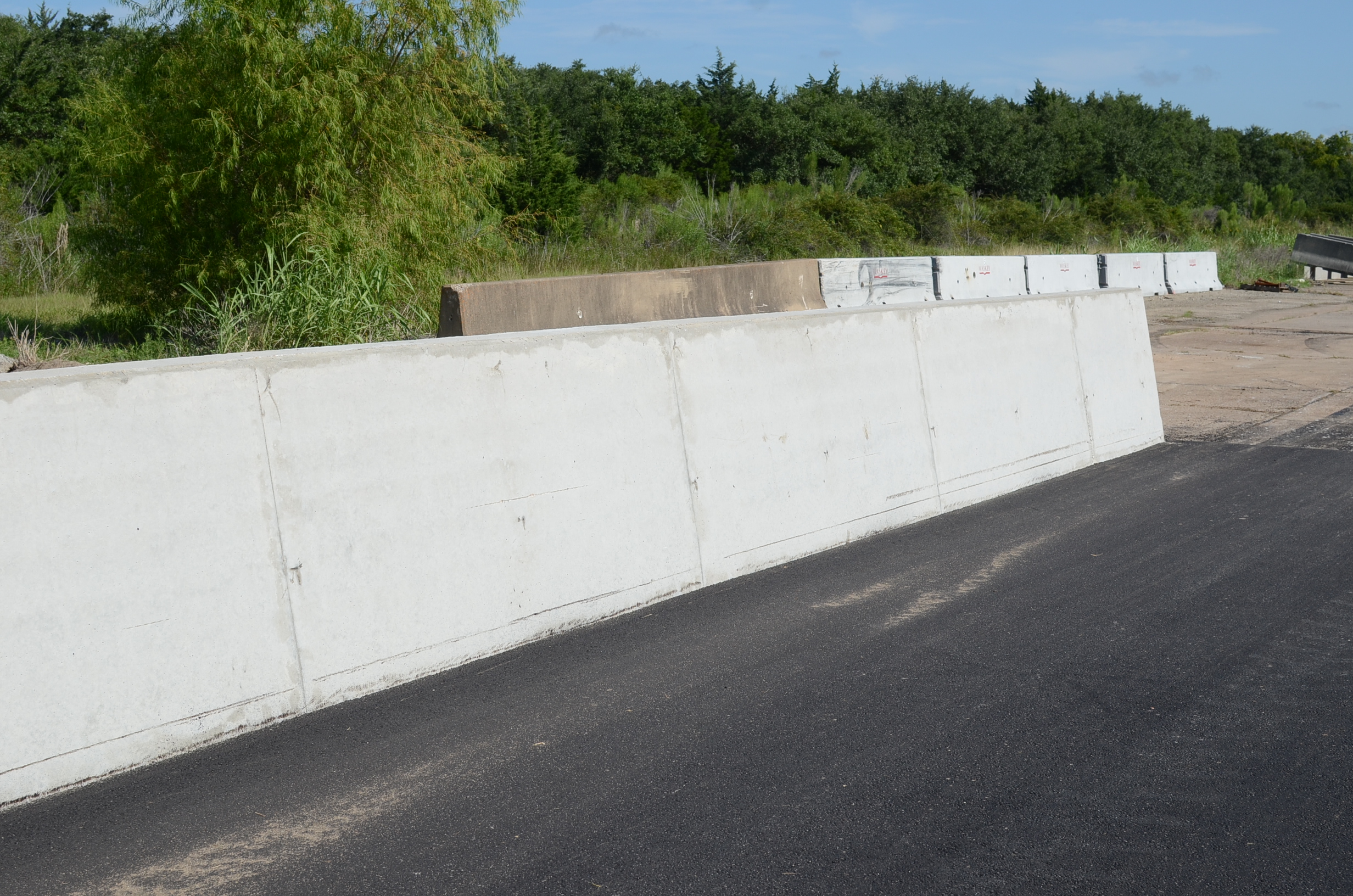

75 ft long Keyed-In Single Slope Barrier

Report Number(s): 0-6946-1

Description: 42-inch tall SSCB with 1-inch ACP lateral support

Test Level: 4

Barrier Type: Single Slope

MASH Test Number: 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

Test Article Description

Height: 42"

Top Base: 8"

Bottom Base: 24"

Ground Connection: Embedded

Test Article Description

Application: Median
